Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In right front corner of engine compartment. See Figure. |
| A/C Control Module | Below center of dash, forward of shift lever. See Figure. |
| Body Control Module | At lower left side of dash. See Figure. |
| Cruise Control Module (2.0L) | On right side of firewall, behind strut tower. See Figure. |
| Cruise Control Module (2.7L) | On right side of firewall, behind strut tower. See Figure. |
| DRL Control Module | On left front inner fender panel. See Figure. |

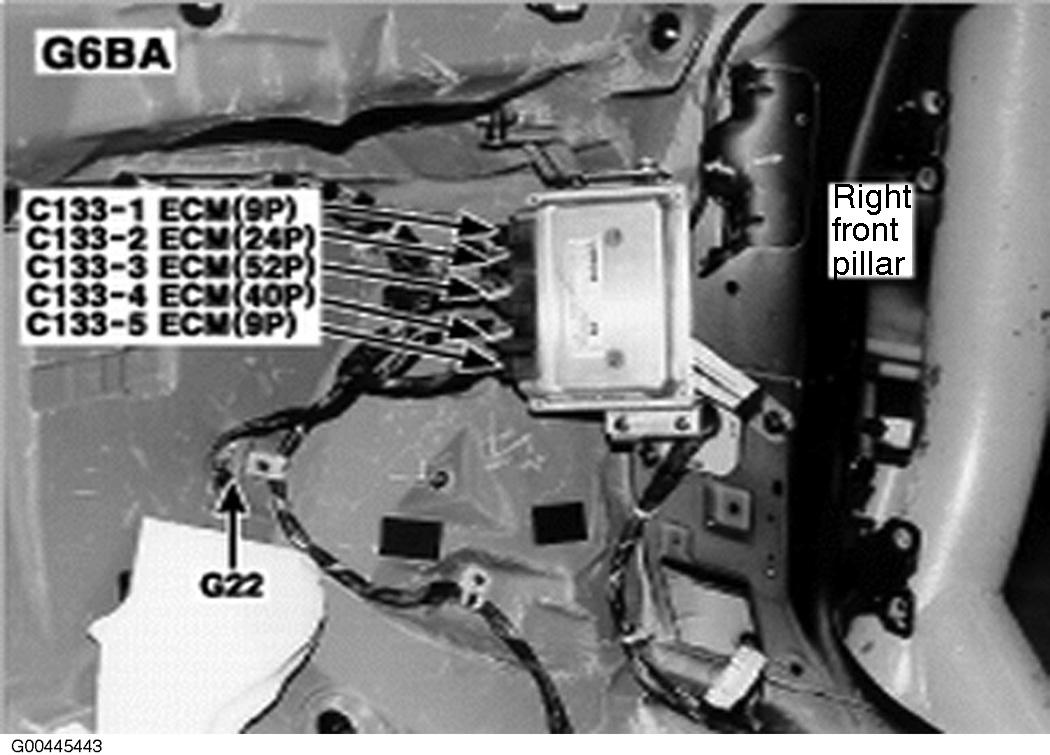

| ECM (2.7L) | Behind right side of dash. See Figure. |

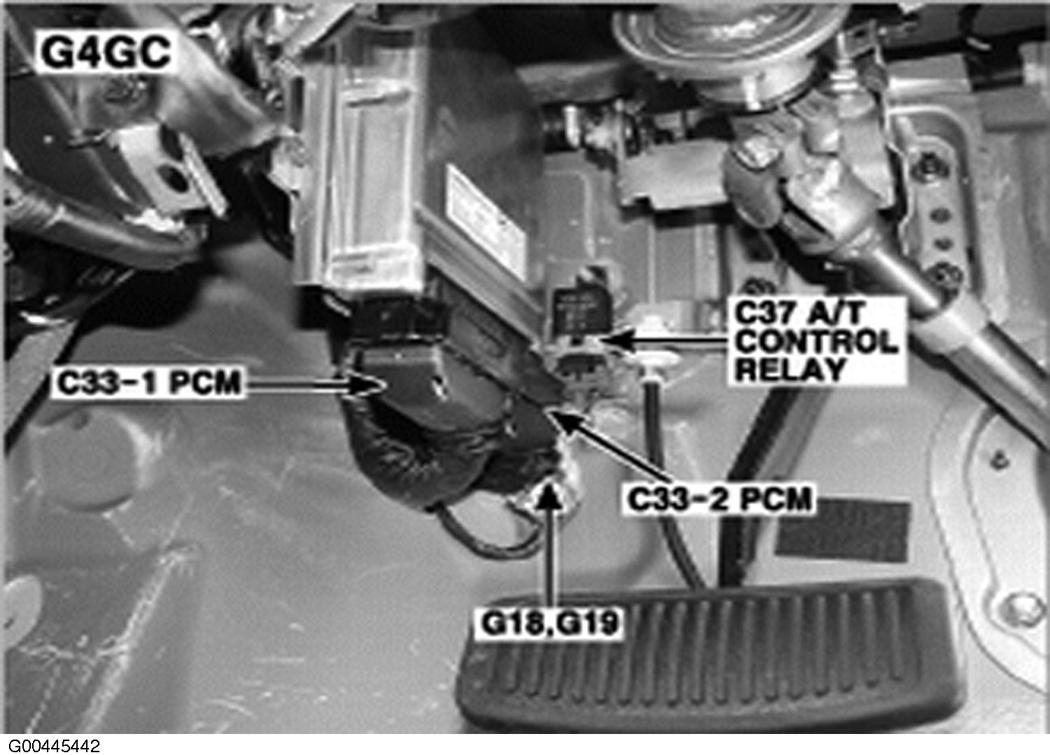

| PCM (2.0L) | Behind left side of dash. See Figure. |
| SRS Control Module | Under rear console. See Figure. |
| Sunroof Controller | Front of sunroof opening. See Figure. |

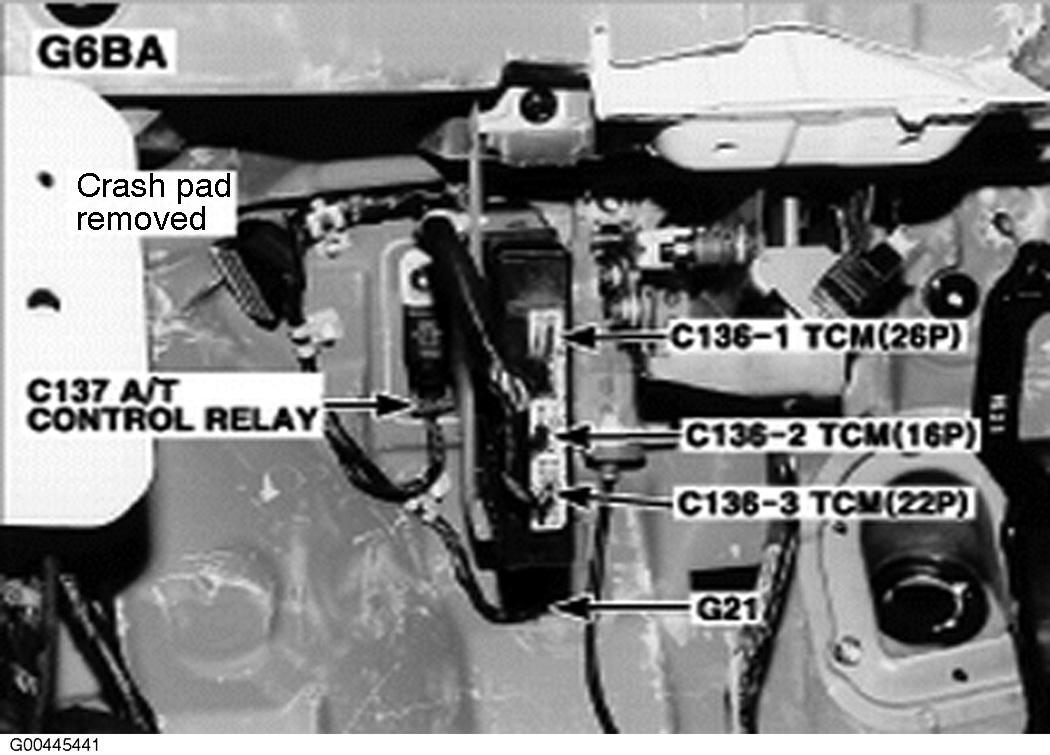

| TCM (2.7L) | Behind left side of dash. See Figure. |
