Components Location

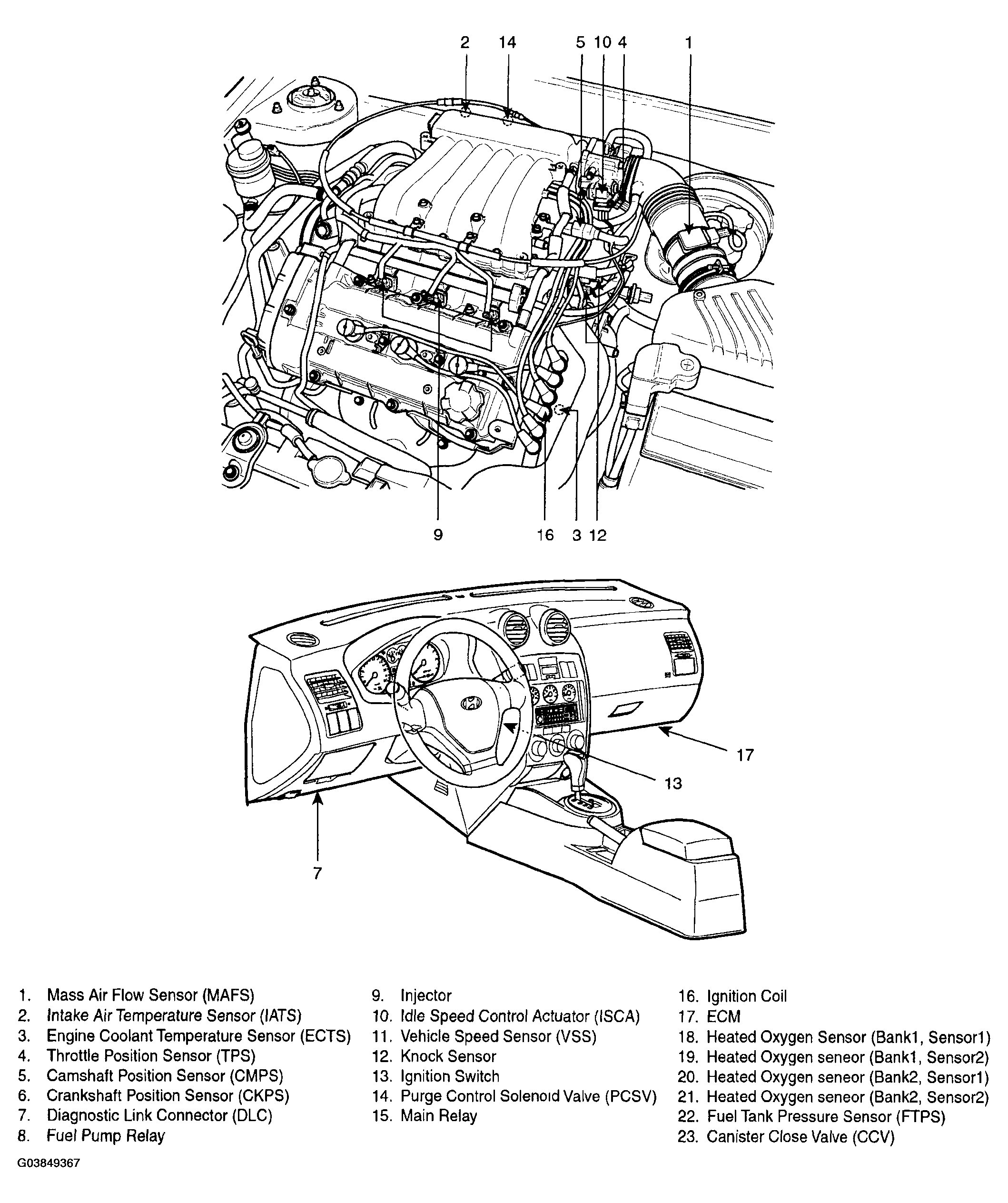

Fig 1: Identifying Fuel System Components Location
G03849367Courtesy of HYUNDAI MOTOR CO.

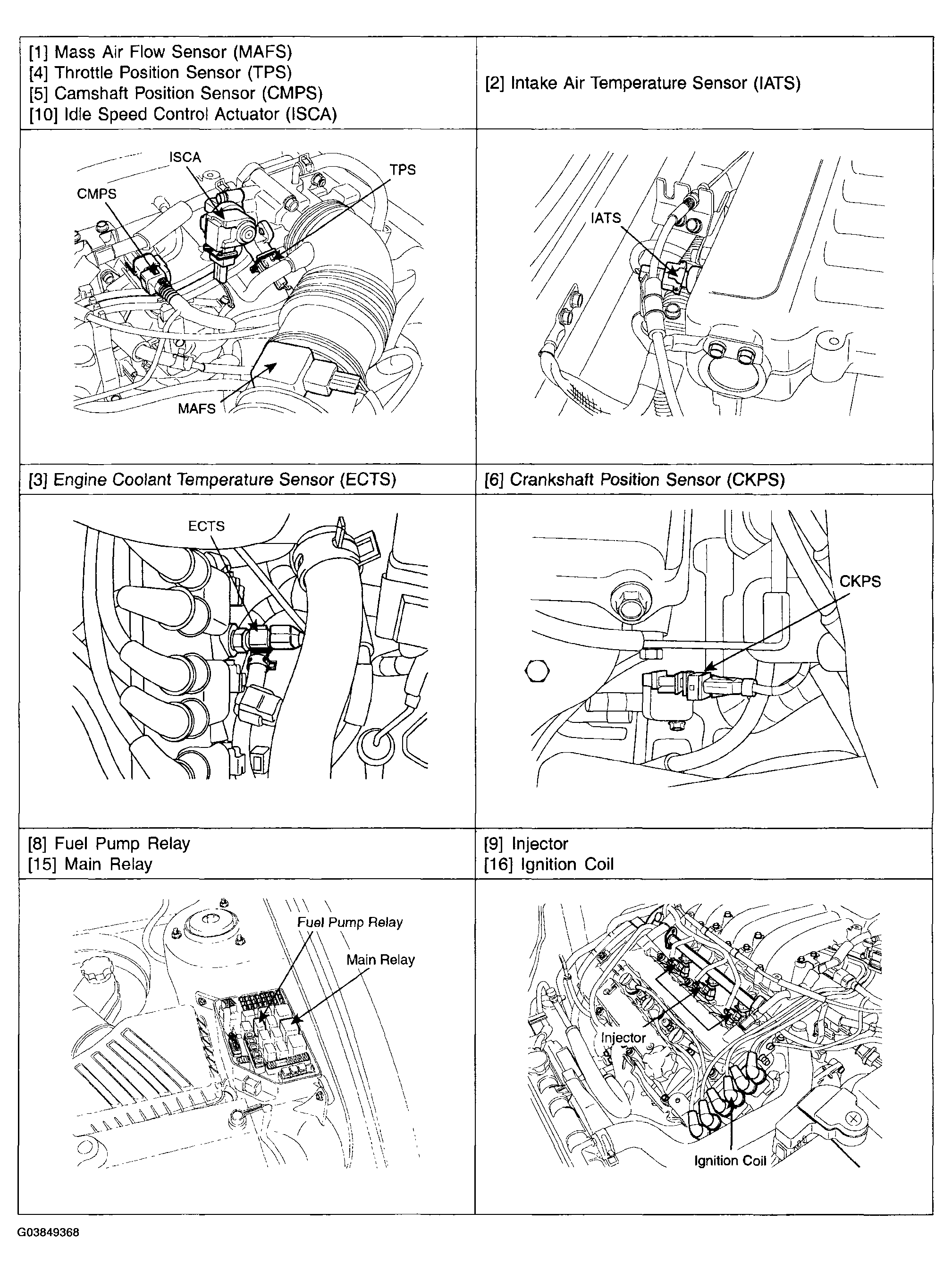

Fig 2: Identifying Fuel System Relay And Sensors (1 Of 2)
G03849368Courtesy of HYUNDAI MOTOR CO.

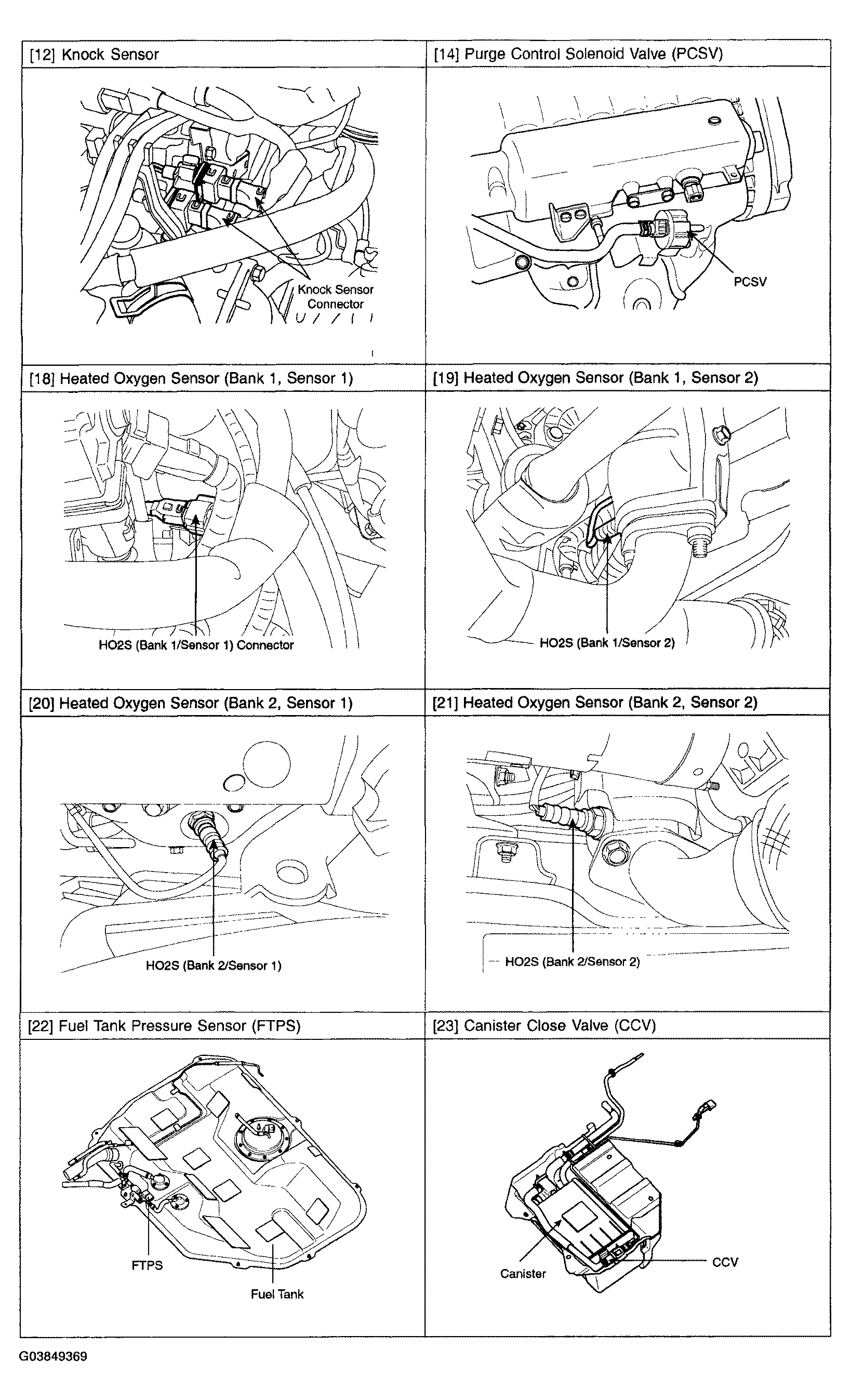

Fig 3: Identifying Fuel System Relay And Sensors (2 Of 2)
G03849369Courtesy of HYUNDAI MOTOR CO.
