Coupling Assembly: Reassembly

When reassembling the back plate oil seal (A), reassemble it using a suitable tool (B).

Fig 1: Identifying Back Plate Oil Seal
Courtesy of HYUNDAI MOTOR CO.
In case of the coupling case oil seal (A), too, reassemble it using a suitable tool (B).

Fig 2: Identifying Coupling Case Oil Seal
Courtesy of HYUNDAI MOTOR CO.

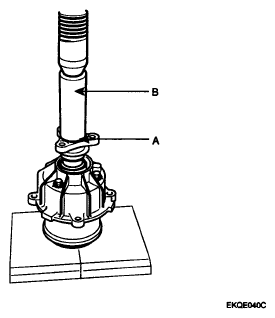

When reassembling the 4WD coupling assembly and the flange (A), too, reassemble them using a suitable tool (B).

Fig 3: Identifying 4WD Coupling Assembly And Flange
Courtesy of HYUNDAI MOTOR CO.

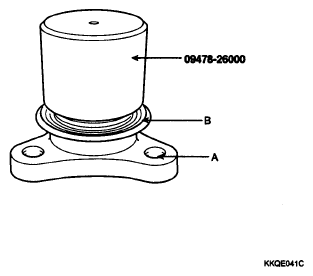

Install the flange (A) oil seal (B) using special tool (09478-26000).

Fig 4: Identifying Flange Oil Seal With Special Tool (09478-26000)
Courtesy of HYUNDAI MOTOR CO.
