Coupling Assembly: Removal

Remove the 4WD coupling bolts (A-3EA) mounted to the rear propellar shaft (B).

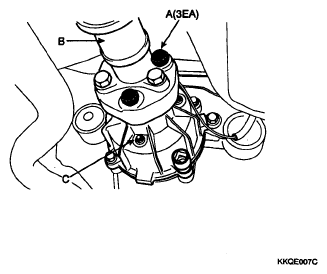

Fig 1: Identifying 4WD Coupling Bolts (A-3EA) Mounted To Rear Propellar Shaft
Courtesy of HYUNDAI MOTOR CO.
Using a flat tool (A), separate the propellar shaft (C) from 4WD coupling (B).

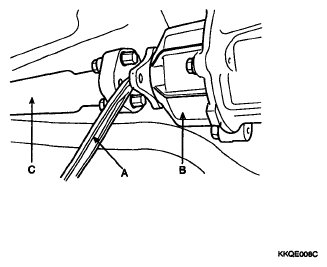

Fig 2: Identifying Propellar Shaft From 4WD Coupling With Flat Tool
Courtesy of HYUNDAI MOTOR CO.

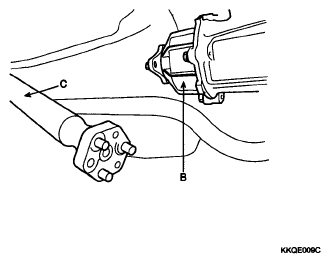

Fig 3: Identifying Propellar Shaft From 4WD Coupling
Courtesy of HYUNDAI MOTOR CO.
Remove the rear axle (B-Differential carrier) bolts mounted to the 4WD coupling (A) by a socket (C).

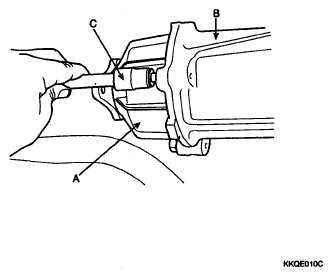

Fig 4: Removing Rear Axle Bolts Mounted To 4WD Coupling
Courtesy of HYUNDAI MOTOR CO.
Remove the electric magnetic clutch connector (A).

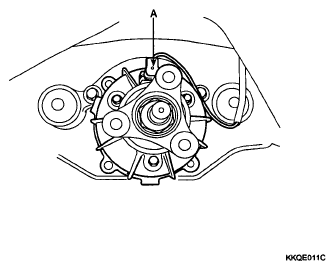

Fig 5: Identifying Electric Magnetic Clutch Connector
Courtesy of HYUNDAI MOTOR CO.
Using a flat tool (A), separate the 4WD coupling assembly (B) from the rear differential carrier (C).

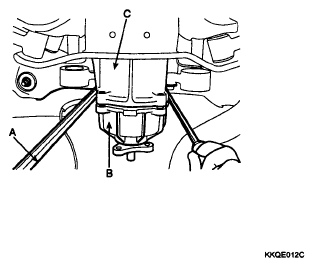

Fig 6: Identifying 4WD Coupling Assembly From Rear Differential Carrier
Courtesy of HYUNDAI MOTOR CO.
Remove the 4WD coupling assembly (A).

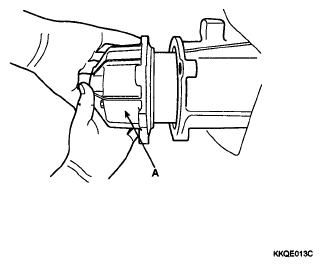

Fig 7: Identifying 4WD Coupling Assembly
Courtesy of HYUNDAI MOTOR CO.
