Control Algorithm Flow Chart

The base control algorithm of the ITM ECM is defined by the following flowchart:

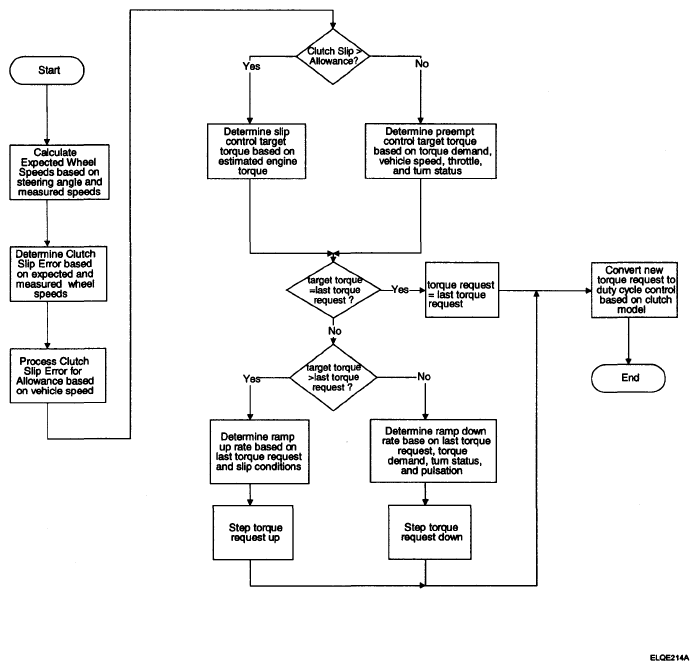

Fig 1: Control Algorithm Of ITM ECM Flow Chart

G04810991

Courtesy of HYUNDAI MOTOR CO.
