Fuel System (G4GC-GSL 2.0L)
>>
Gasoline Engine Control System
>>
Components Location
Components Location

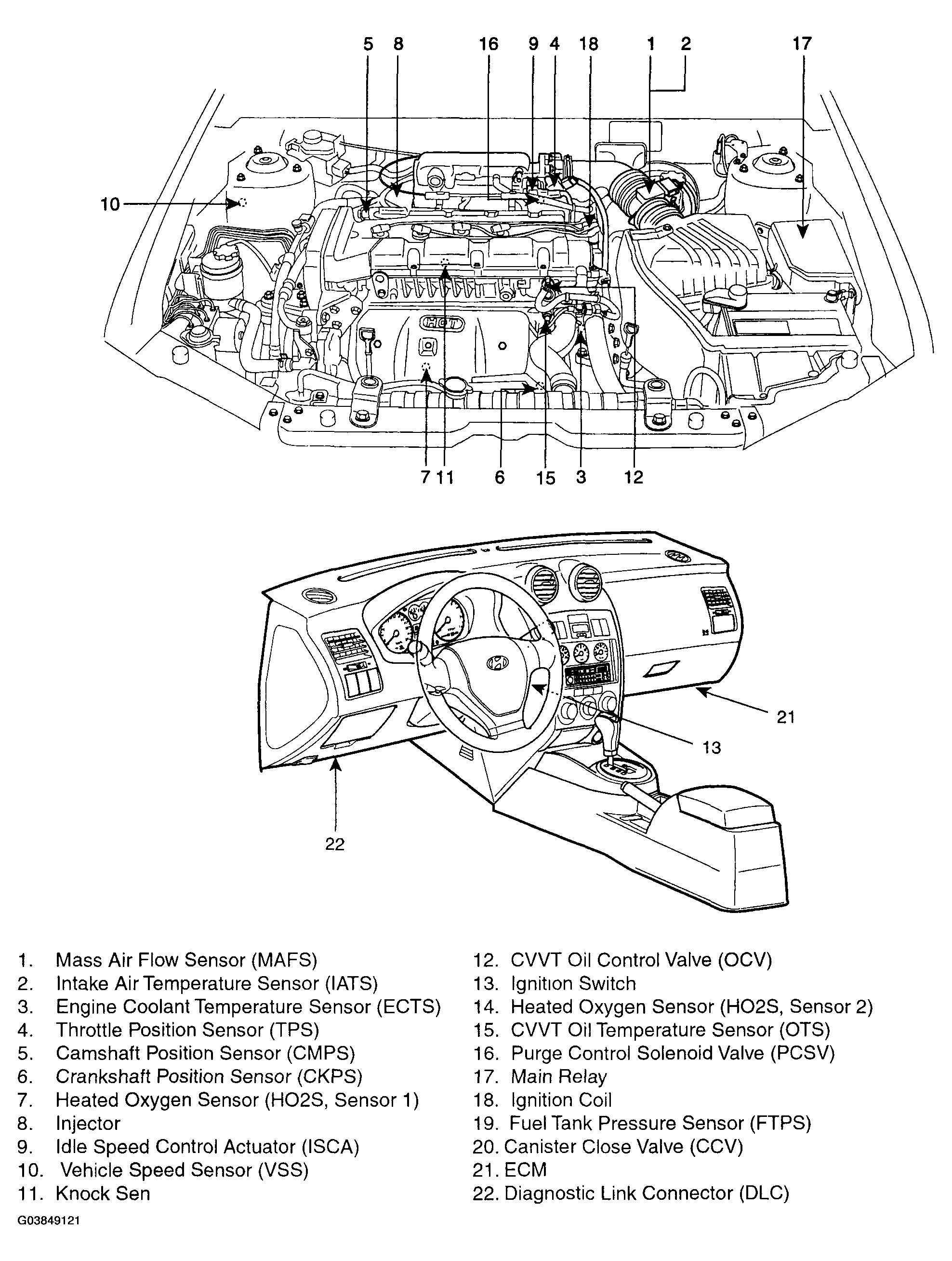

Fig 1: Identifying fuel system Components Location (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

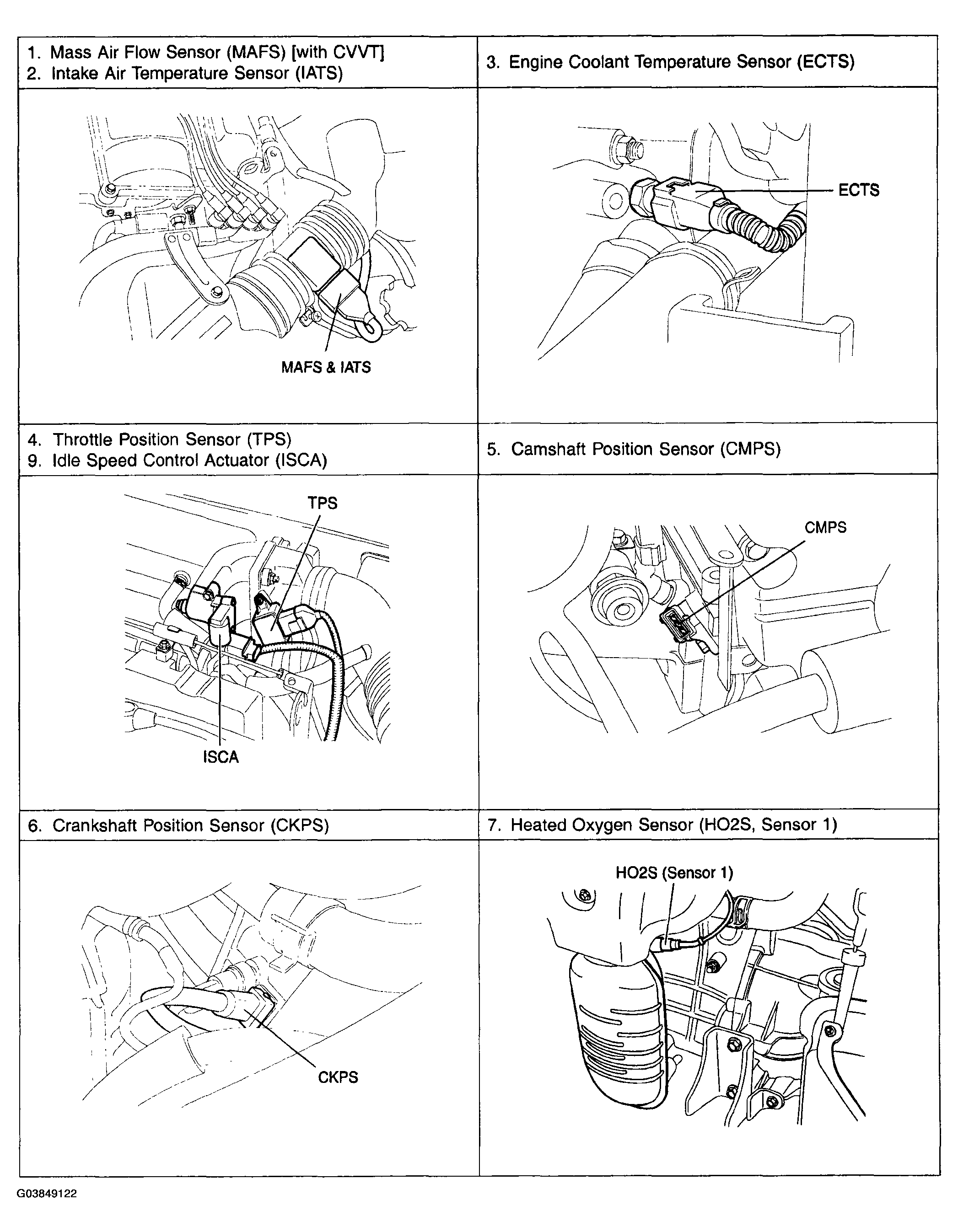

Fig 2: Identifying fuel system Components Location (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

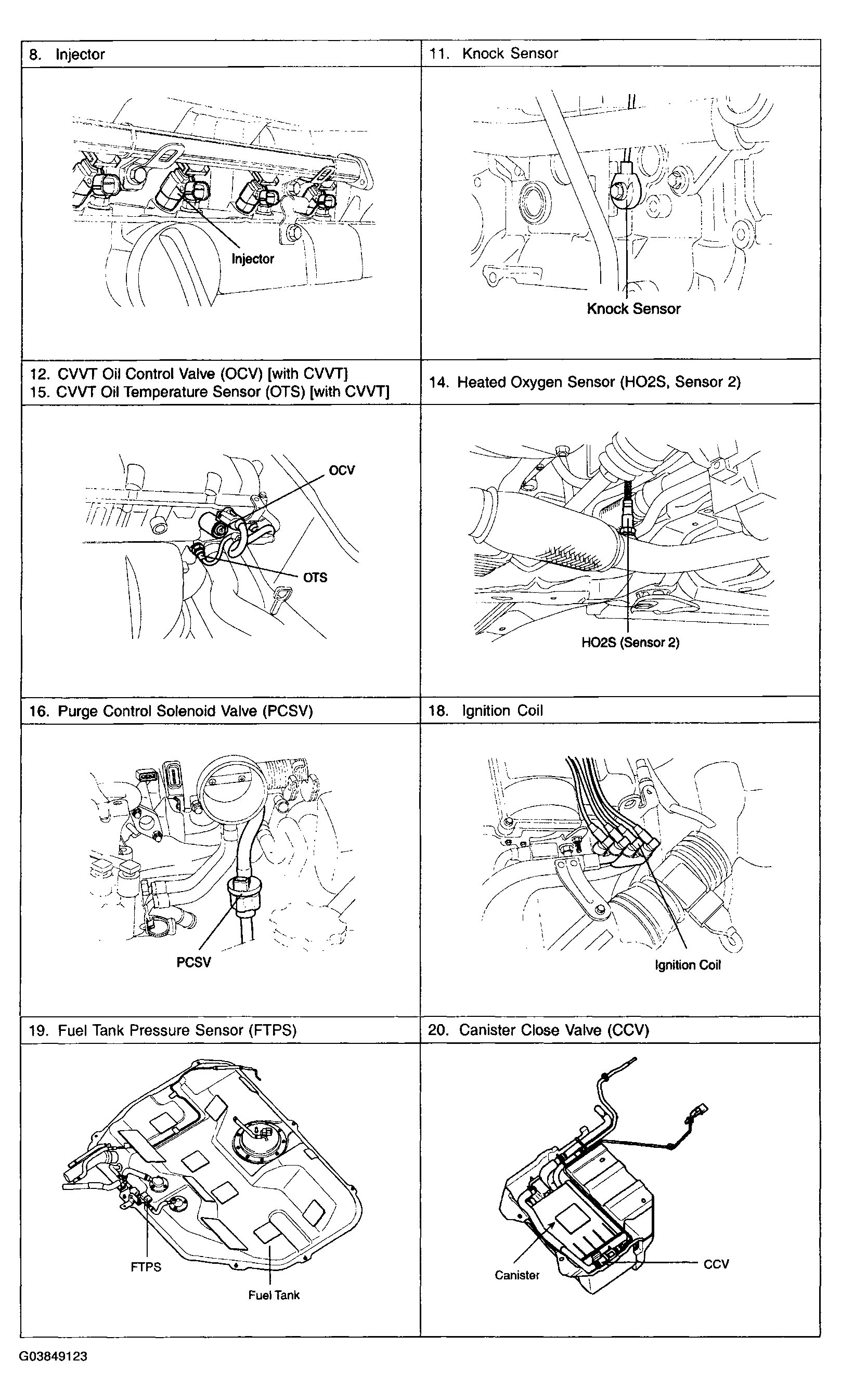

Fig 3: Identifying fuel system Components Location (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
