Charging System: Alternator: Replacement

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Disconnect the alternator connector (A) and "B" terminal cable (B) from the alternator (C).

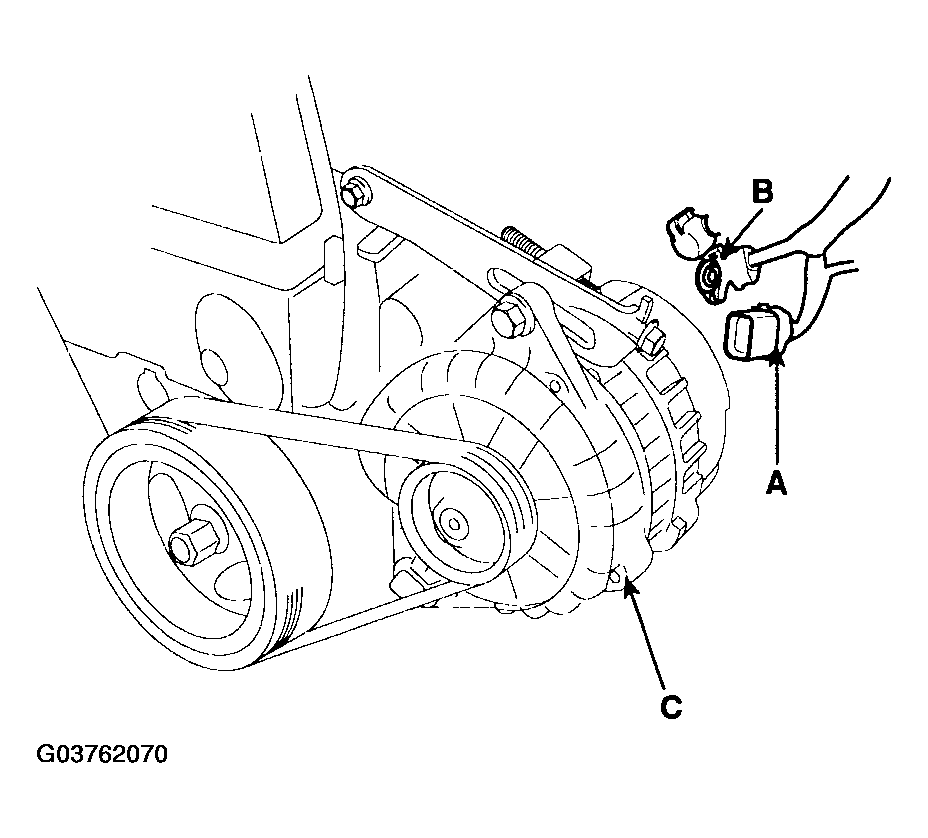

    Fig 1: Disconnecting Alternator Connector & Terminal Cable From Alternator (1 Of 2)
    G03762070Courtesy of HYUNDAI MOTOR CO.

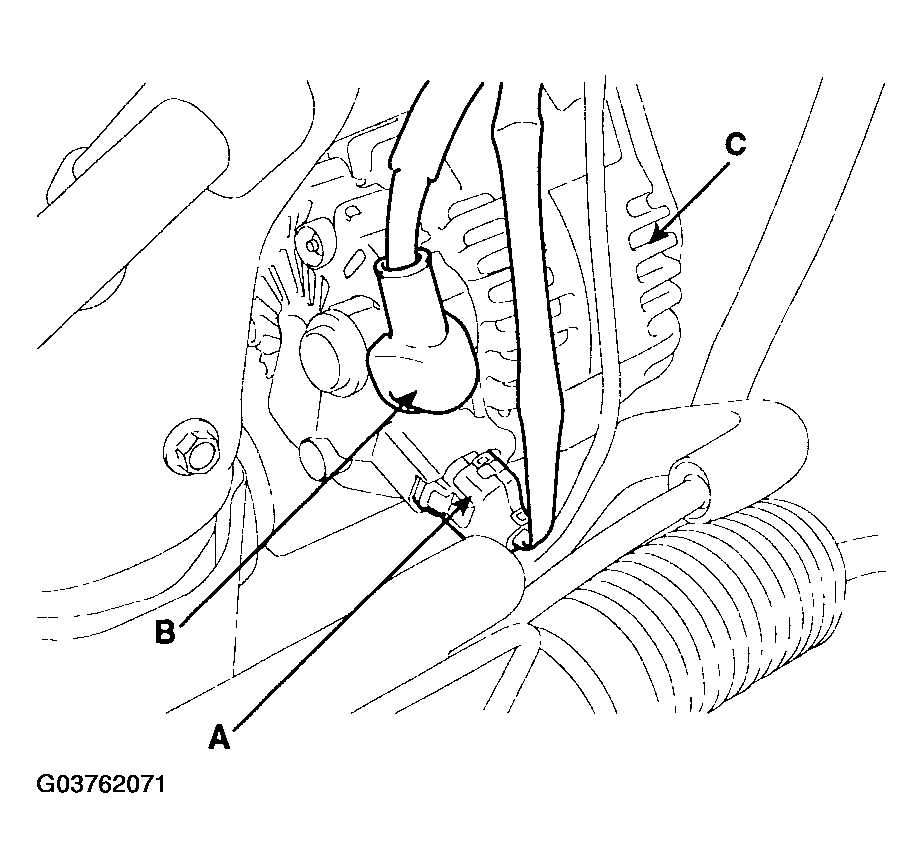

    Fig 2: Disconnecting Alternator Connector & Terminal Cable From Alternator (2 Of 2)
    G03762071Courtesy of HYUNDAI MOTOR CO.
  3. Remove the adjusting bolt (A) and mounting bolt (B), then remove the alternator belt.
  4. Pull out the through bolt (C), then remove the alternator (D).

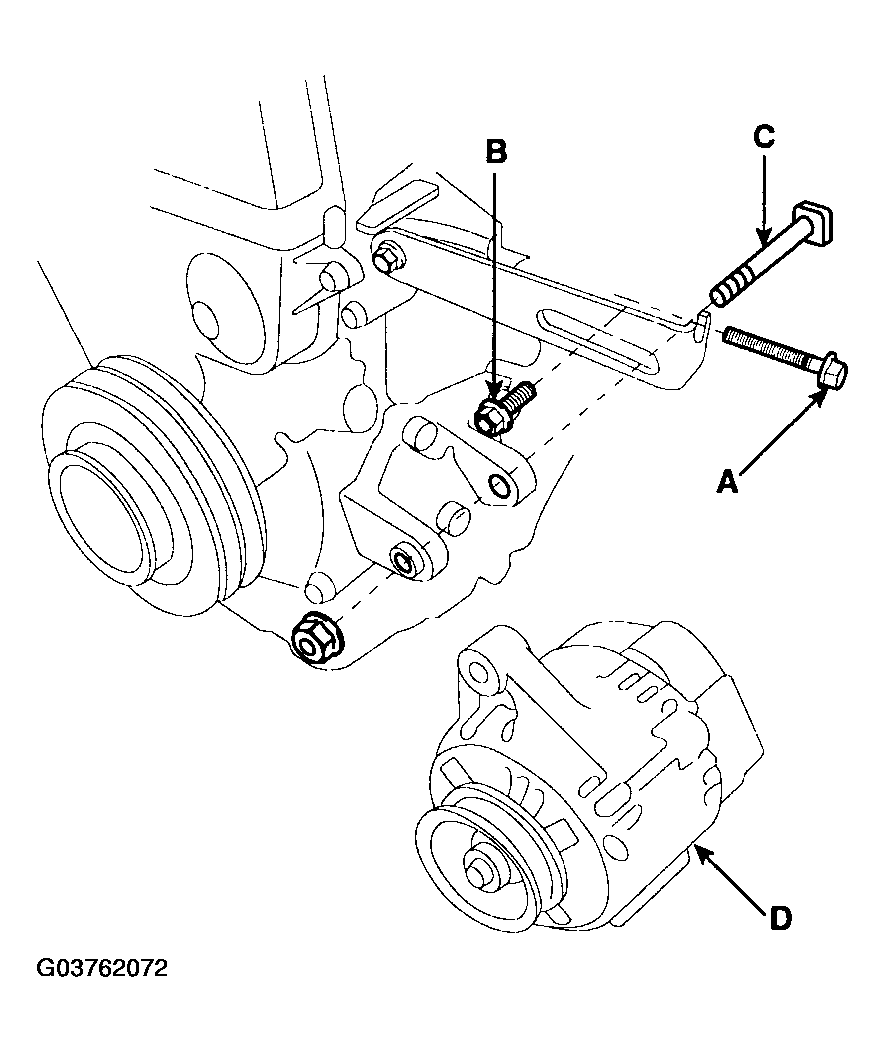

    Fig 3: Identifying Adjusting Bolt, Mounting Bolt, Through Bolt & Alternator
    G03762072Courtesy of HYUNDAI MOTOR CO.

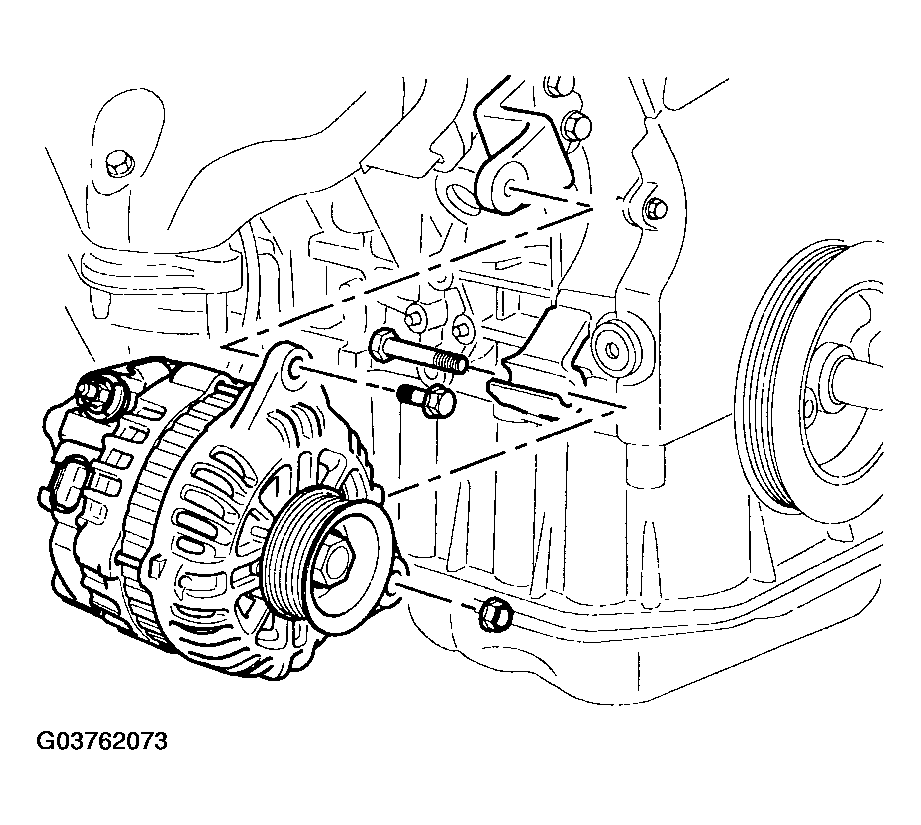

    Fig 4: Removing Alternator
    G03762073Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. Adjust the alternator belt tension after installation.
