Circuit Diagram

[A/T]

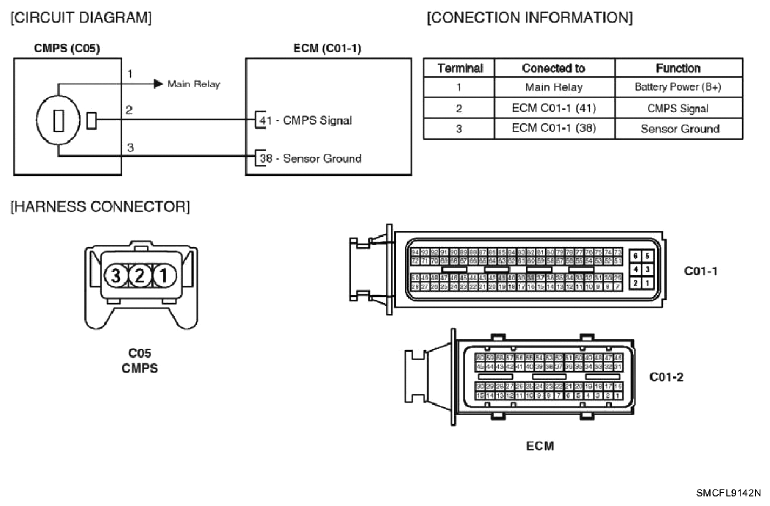

Fig 1: CMPS And ECM Circuit Diagram (A/T)

G06129981

Courtesy of HYUNDAI MOTOR CO.

[M/T]

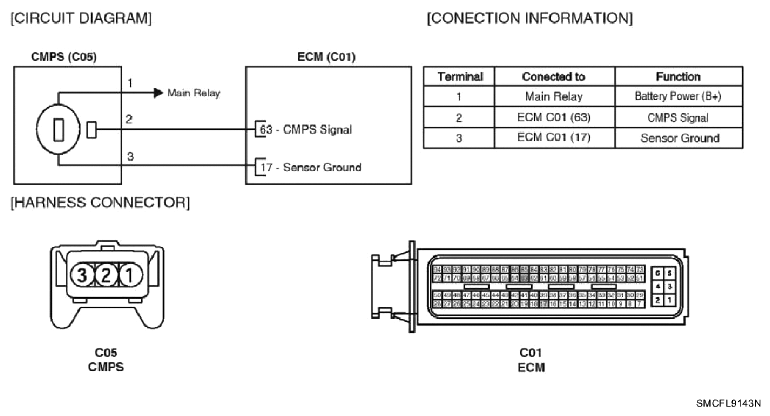

Fig 2: CMPS And ECM Circuit Diagram (M/T)

G06129982

Courtesy of HYUNDAI MOTOR CO.
