Circuit Diagram

[A/T]

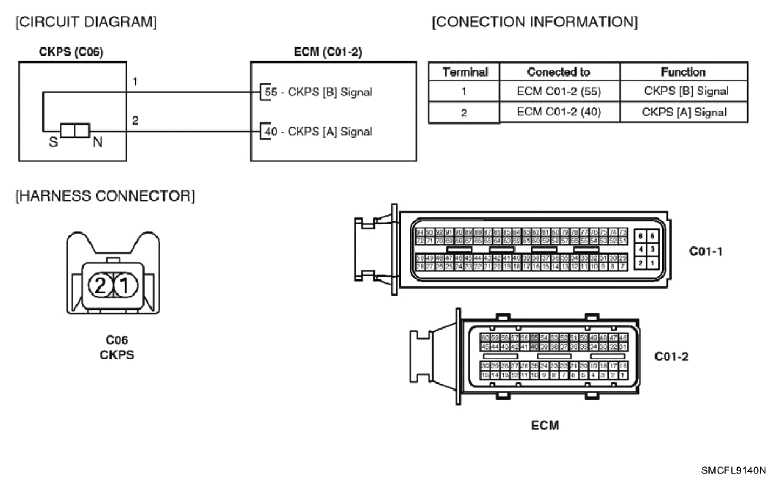

Fig 1: CKPS And ECM Circuit Diagram (A/T)

G06129977

Courtesy of HYUNDAI MOTOR CO.

[M/T]

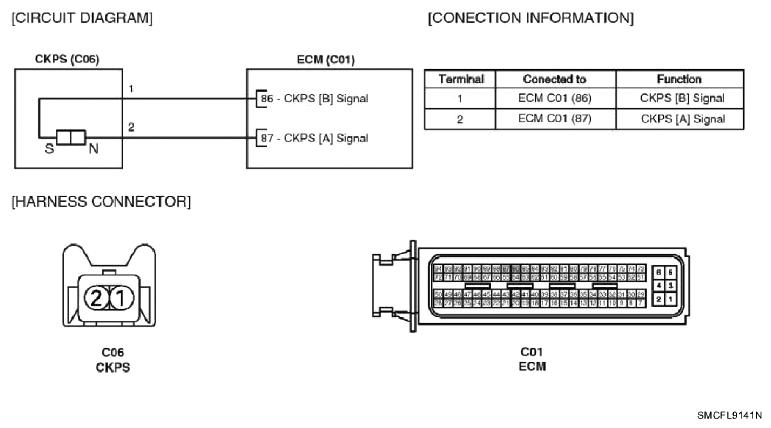

Fig 2: CKPS And ECM Circuit Diagram (M/T)

G06129978

Courtesy of HYUNDAI MOTOR CO.
