Circuit Diagram

[A/T]

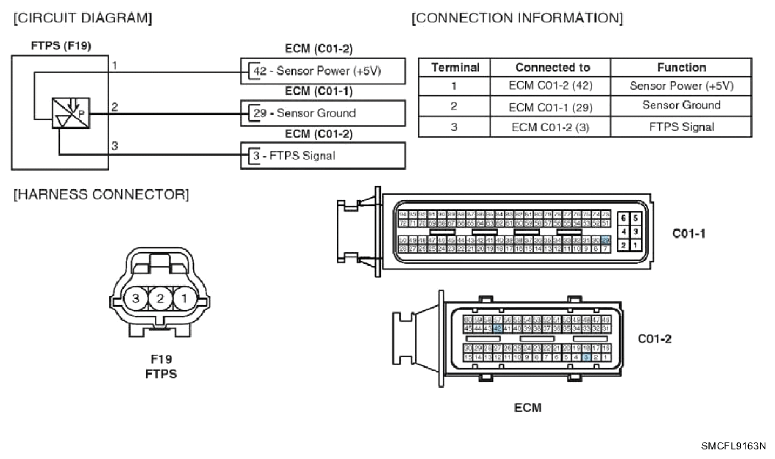

Fig 1: FTPS And ECM Circuit Diagram (A/T)

G06129992

Courtesy of HYUNDAI MOTOR CO.

[M/T]

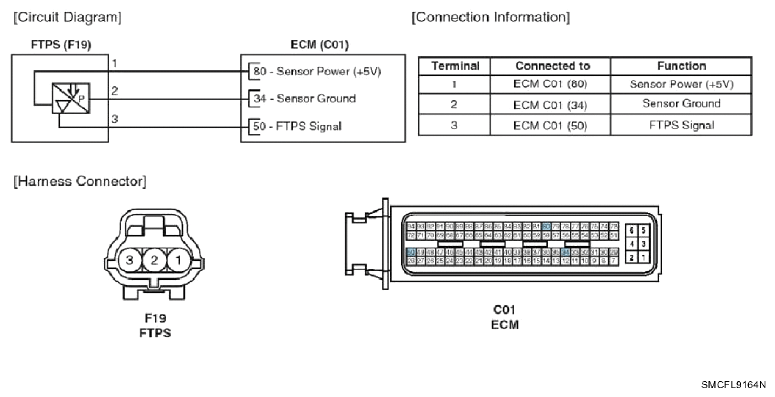

Fig 2: FTPS And ECM Circuit Diagram (M/T)

G06129993

Courtesy of HYUNDAI MOTOR CO.
