Fuel Tank Pressure Sensor (FTPS): Specification

FUEL TANK PRESSURE SENSOR (FTPS) VOLTAGE SPECIFICATION

Pressure (kPa) Output Voltage (V)
-6.67 0.5
0 2.5
+ 6.67 4.5

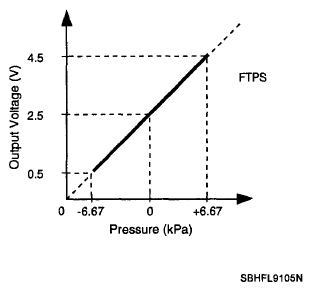

Fig 1: Output Voltage And Pressure Graph
G06106162Courtesy of HYUNDAI MOTOR CO.
