Circuit Diagram

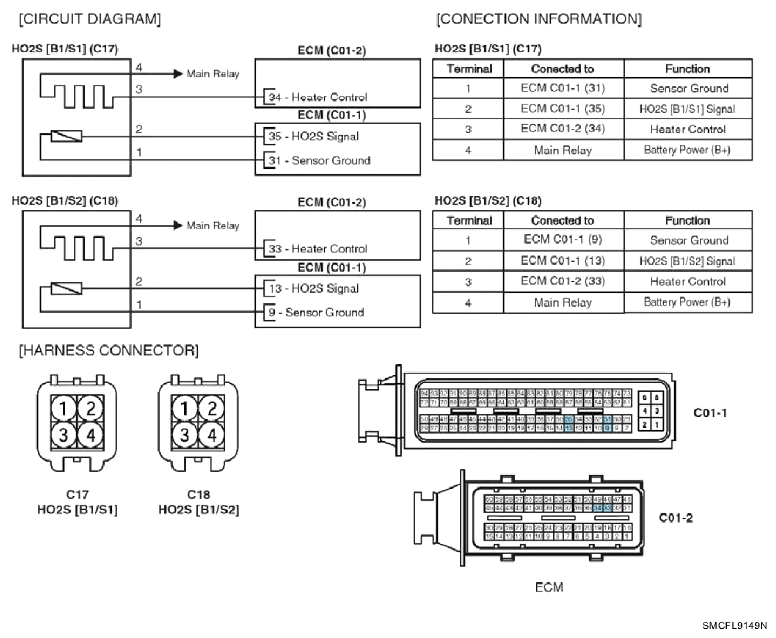

[A/T]

Fig 1: HO2S And ECM Circuit Diagram (A/T)

G06129988

Courtesy of HYUNDAI MOTOR CO.

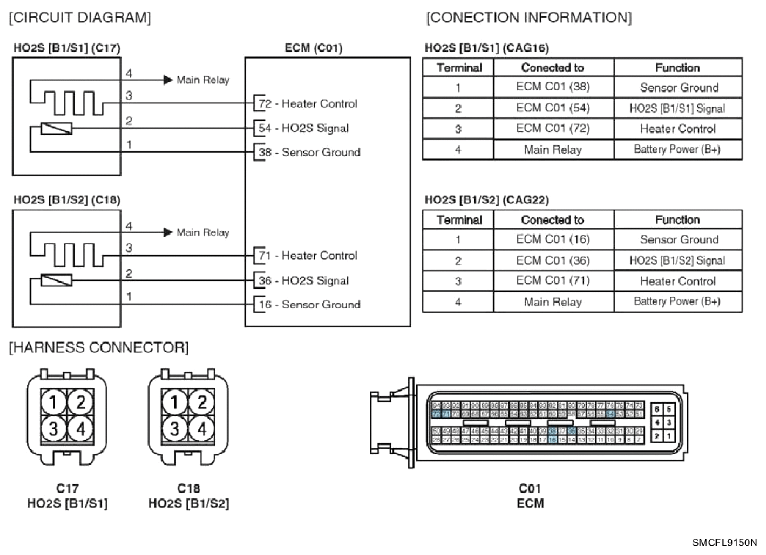

[M/T]

Fig 2: HO2S And ECM Circuit Diagram (M/T)

G06129989

Courtesy of HYUNDAI MOTOR CO.
