Circuit Diagram

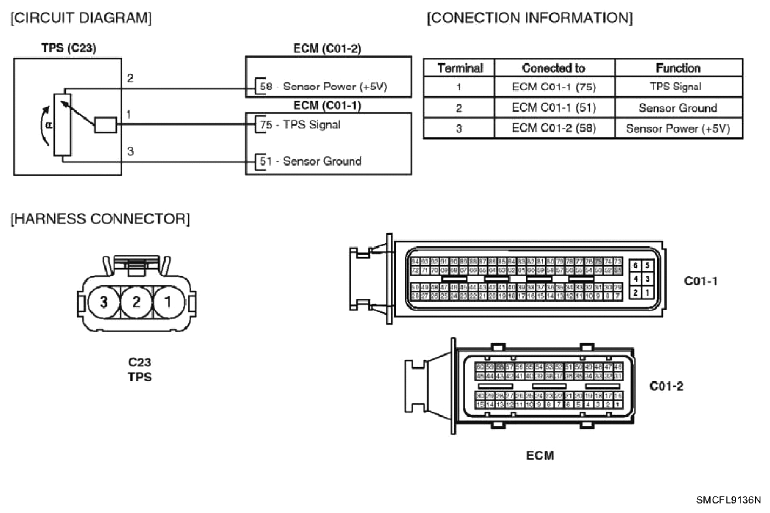

[A/T]

Fig 1: ECM And TPS Circuit Diagram (A/T)

G06129973

Courtesy of HYUNDAI MOTOR CO.

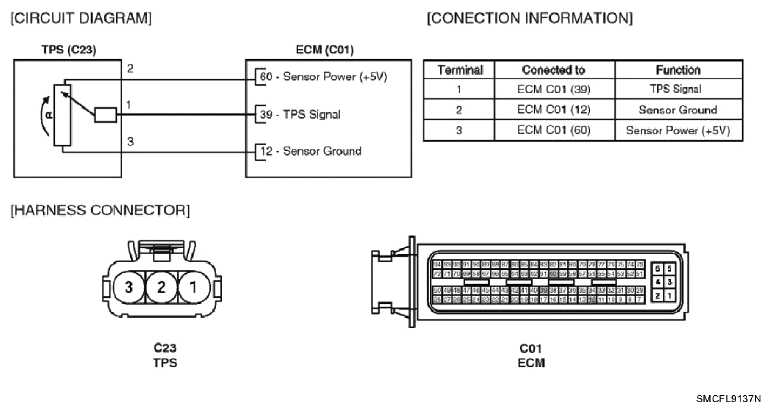

[M/T]

Fig 2: ECM And TPS Circuit Diagram (M/T)

G06129974

Courtesy of HYUNDAI MOTOR CO.
