Home >> Hyundai >> 2009 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Power Windows >> Power Window Switch >> Components >> Power Window Main Switch

Power Window Main Switch

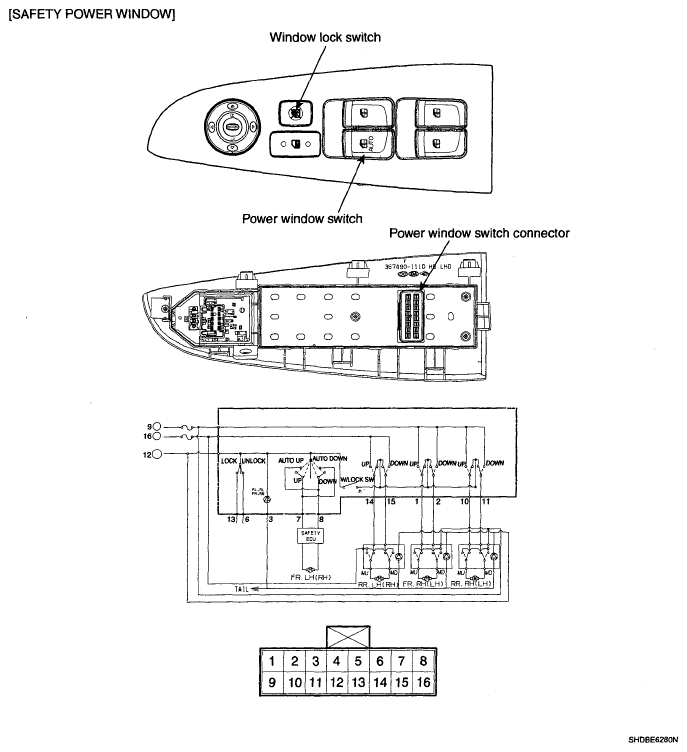

Fig 1: Identifying Power Window Switch Components (Safety Power Window)
G05365494Courtesy of HYUNDAI MOTOR CO.

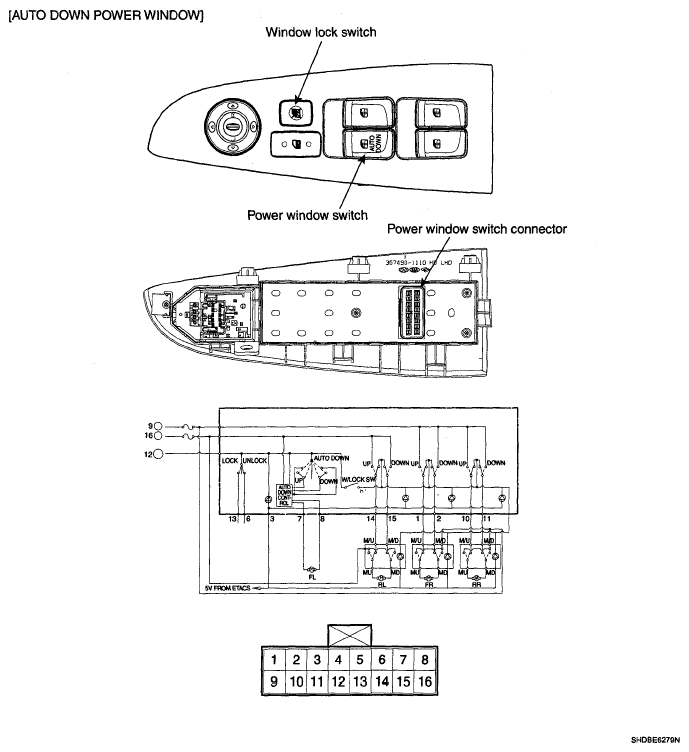

Fig 2: Identifying Power Window Switch Components (Auto Down Power Window)
G05365495Courtesy of HYUNDAI MOTOR CO.
