Circuit Diagram

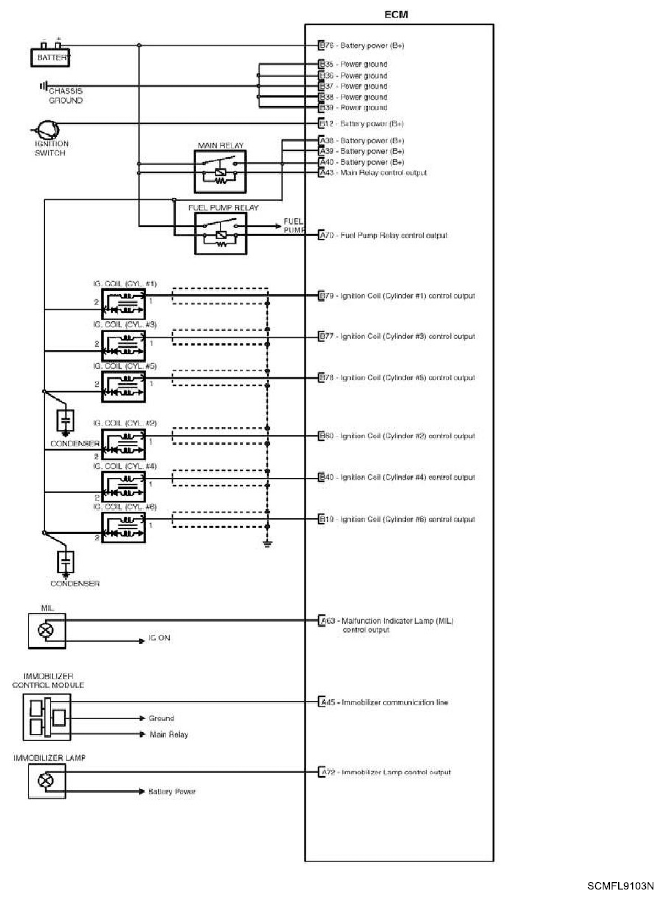

Fig 1: Fuel System - Circuit Diagram (1 Of 5)
G06216285Courtesy of HYUNDAI MOTOR CO.

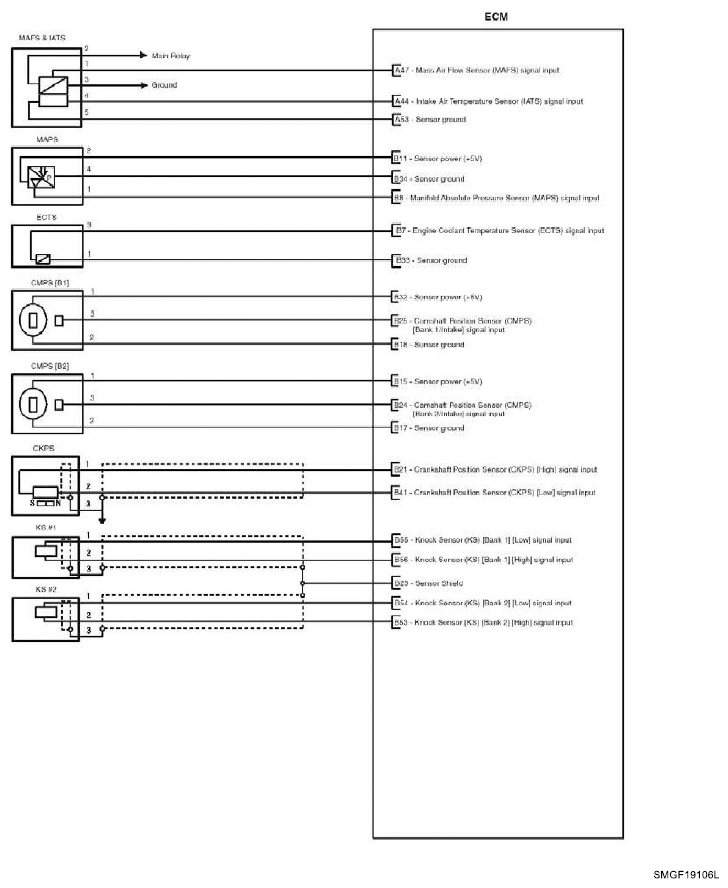

Fig 2: Fuel System - Circuit Diagram (2 Of 5)
G06216286Courtesy of HYUNDAI MOTOR CO.

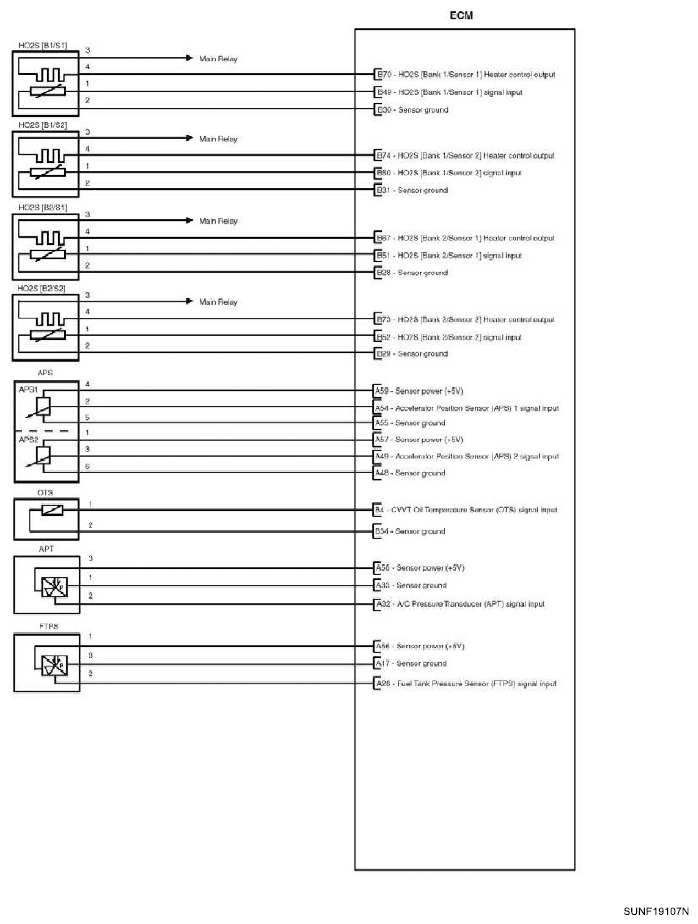

Fig 3: Fuel System - Circuit Diagram (3 Of 5)
G06216287Courtesy of HYUNDAI MOTOR CO.

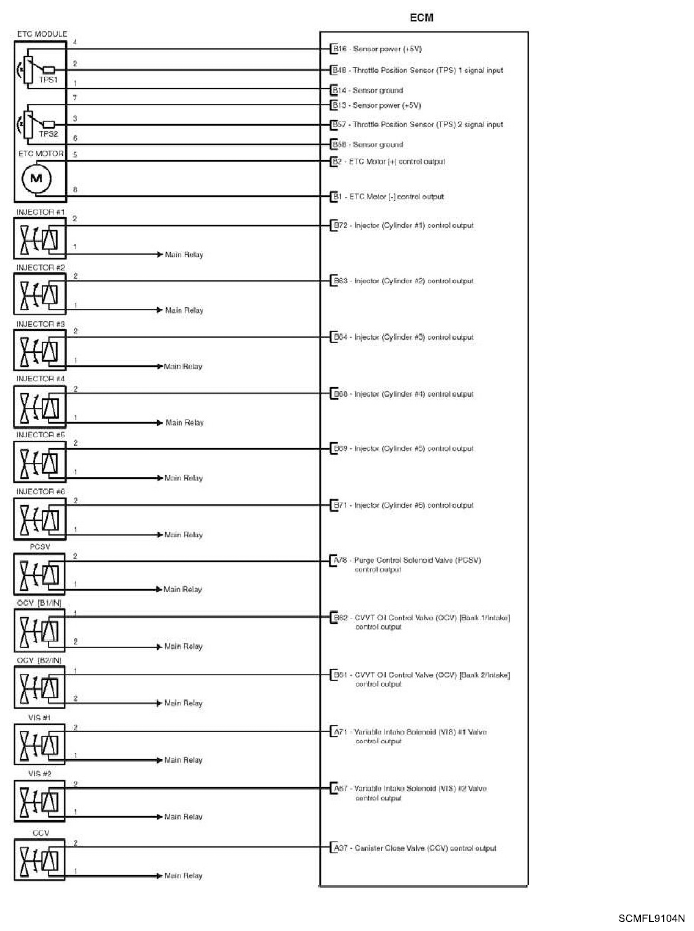

Fig 4: Fuel System - Circuit Diagram (4 Of 5)
G06216288Courtesy of HYUNDAI MOTOR CO.

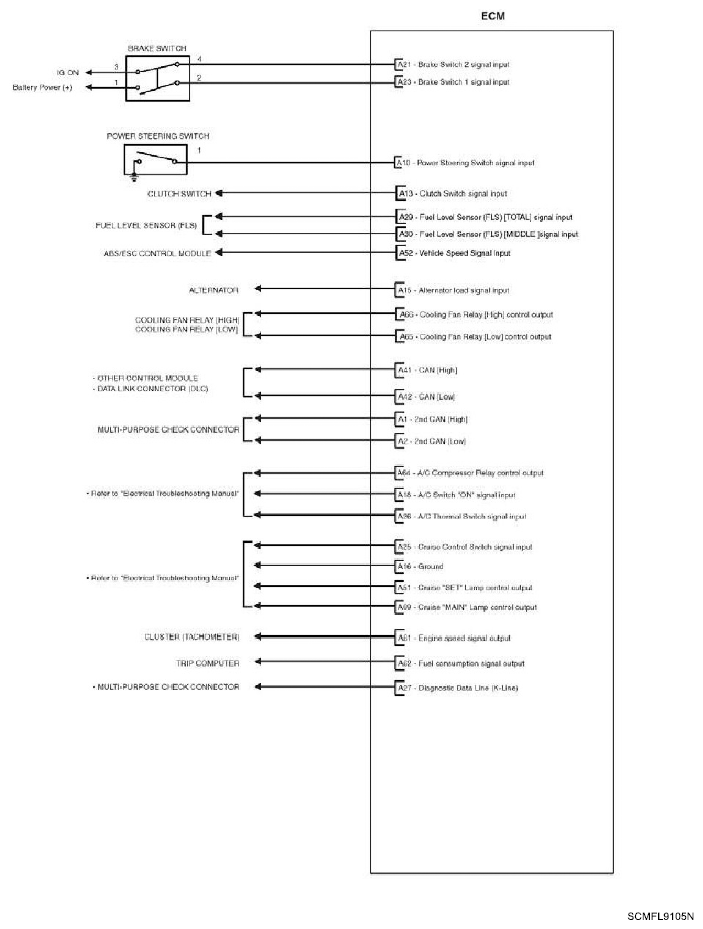

Fig 5: Fuel System - Circuit Diagram (5 Of 5)
G06216289Courtesy of HYUNDAI MOTOR CO.
