Starting System: Starter: Components: Gasoline

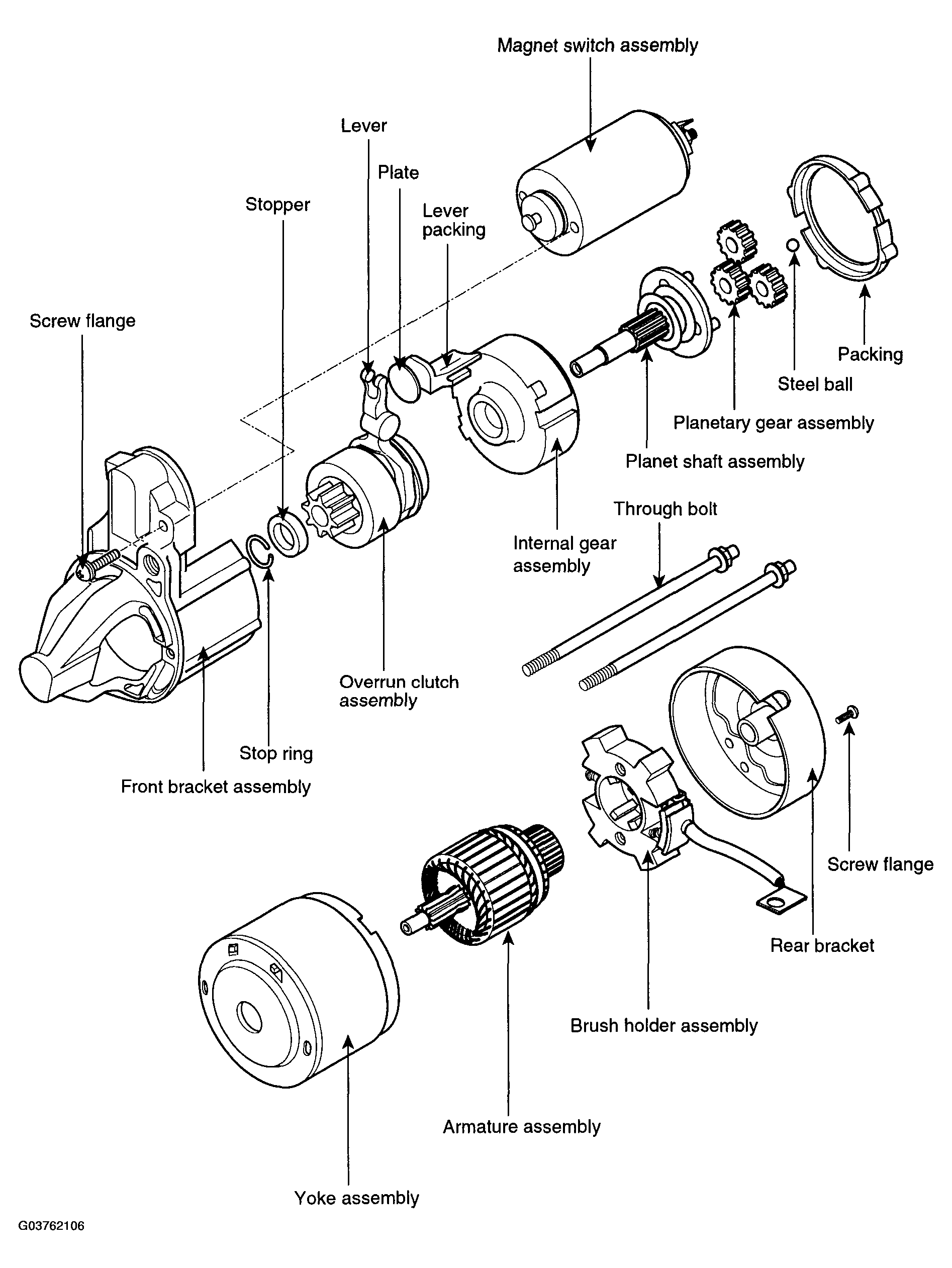

Fig 1: Exploded View Of Starter Assembly (Gasoline)

G03762106

Courtesy of HYUNDAI MOTOR CO.
