Components Location

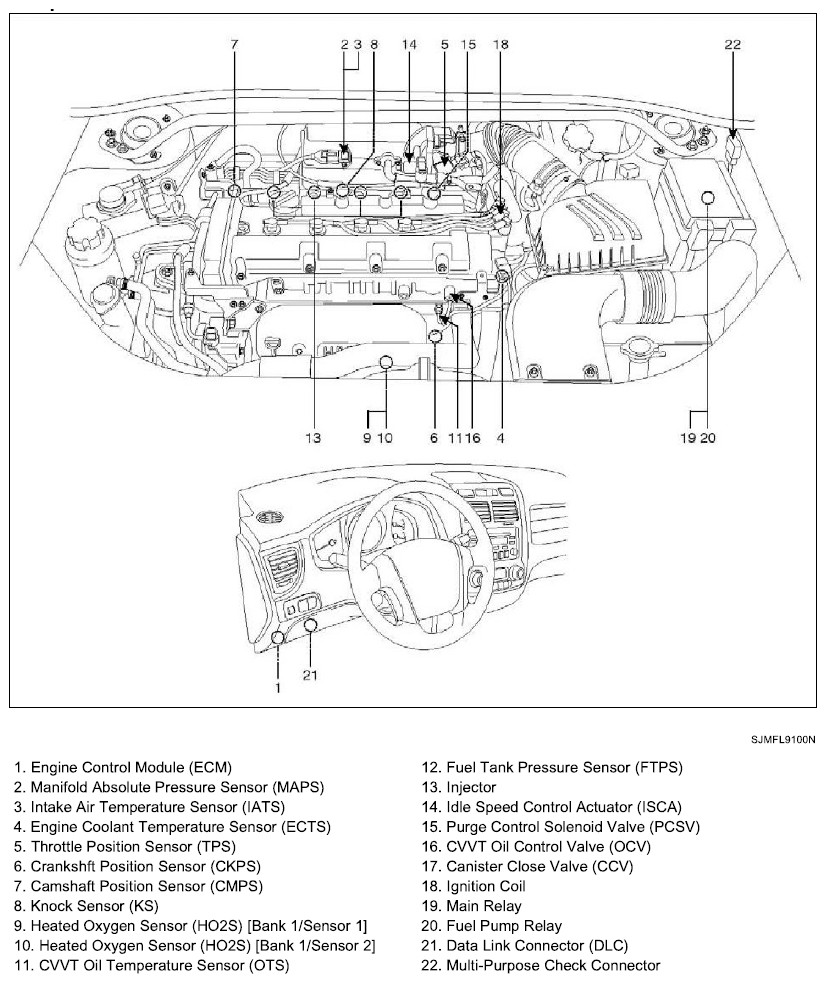

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
G06206215Courtesy of HYUNDAI MOTOR CO.

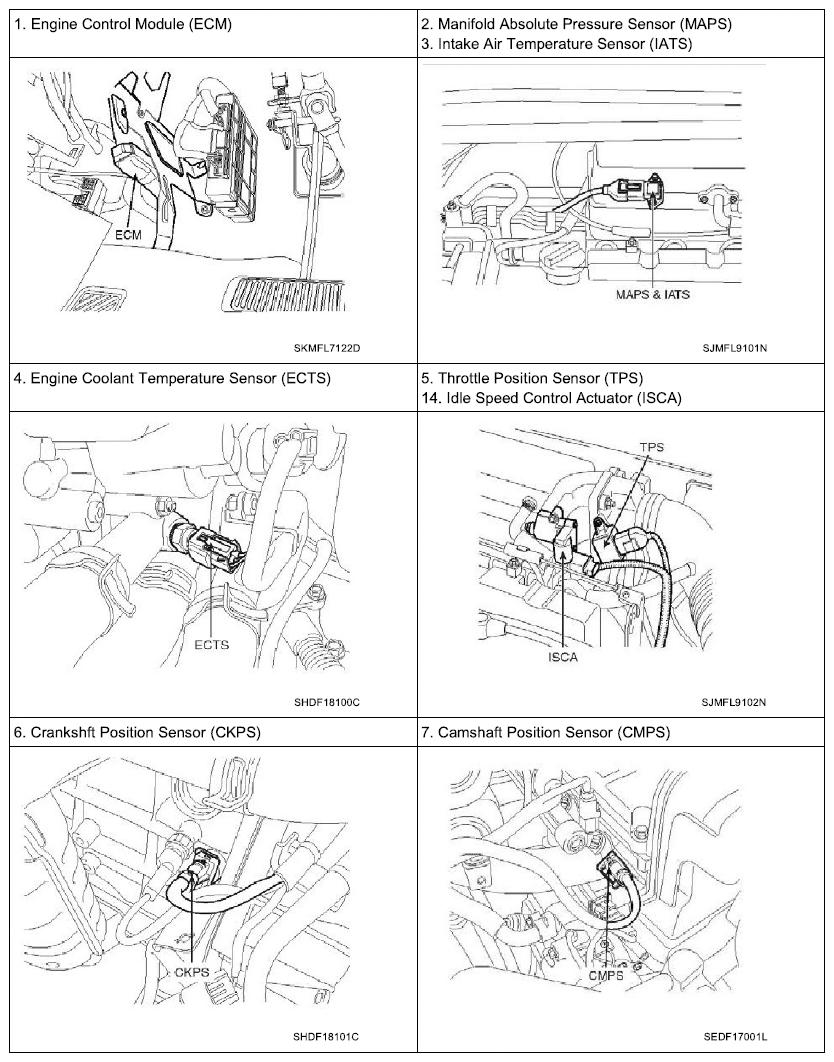

Fig 2: Identifying Engine Control System Components Location (2 Of 4)
G06206216Courtesy of HYUNDAI MOTOR CO.

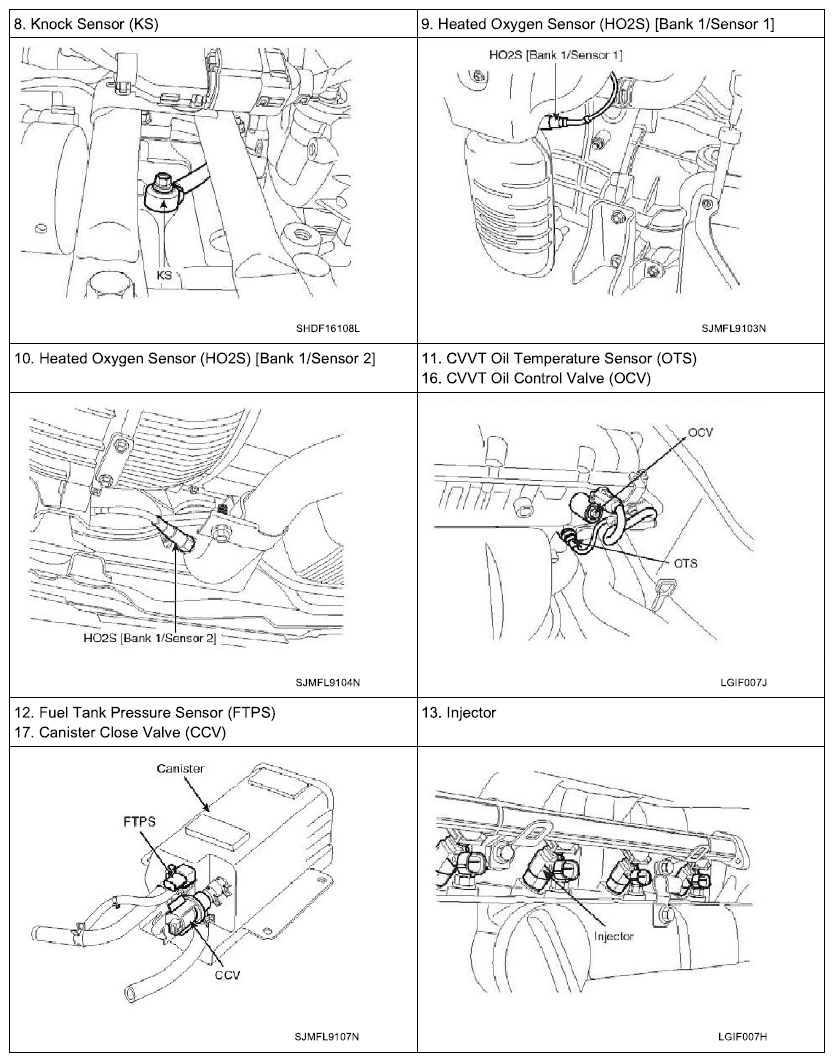

Fig 3: Identifying Engine Control System Components Location (3 Of 4)
G06206217Courtesy of HYUNDAI MOTOR CO.

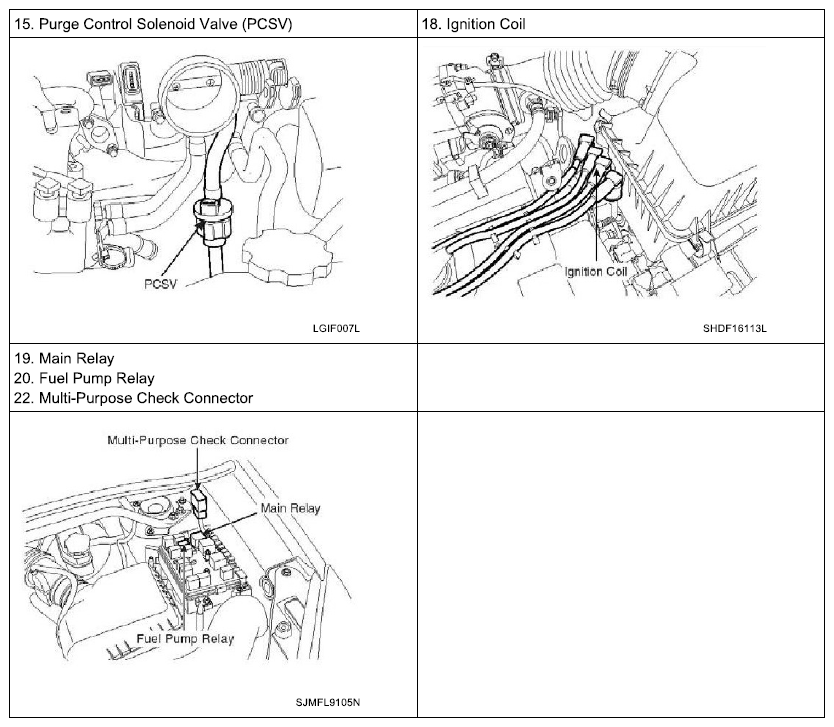

Fig 4: Identifying Engine Control System Components Location (4 Of 4)
G06206218Courtesy of HYUNDAI MOTOR CO.
