Circuit Diagram

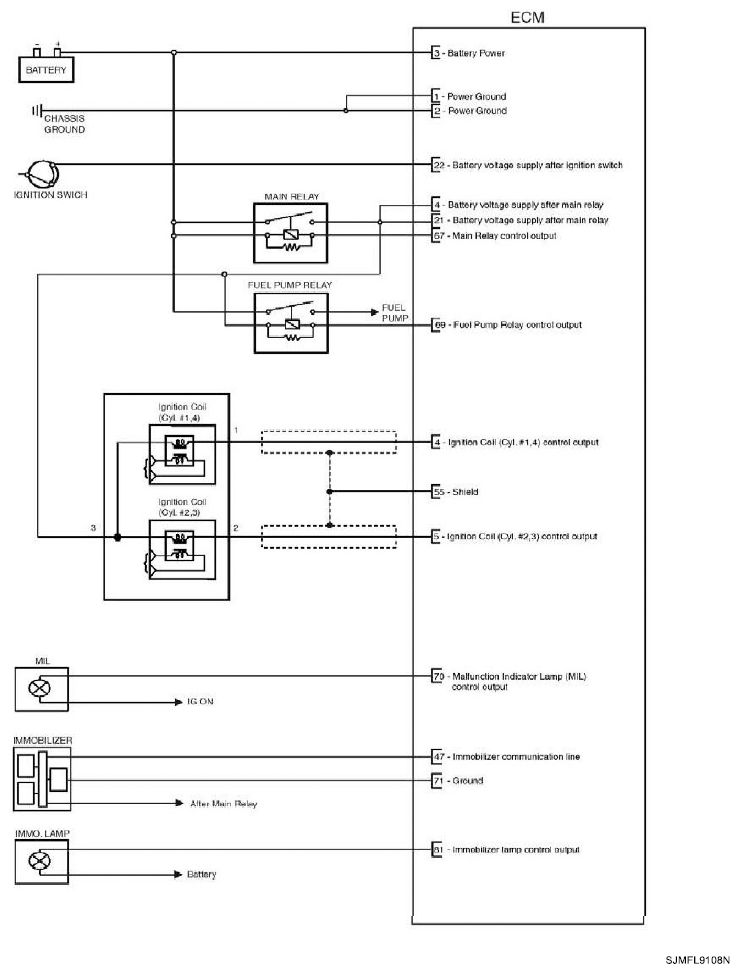

Fig 1: Engine Control System Circuit Diagram (1 Of 4)
G06206220Courtesy of HYUNDAI MOTOR CO.

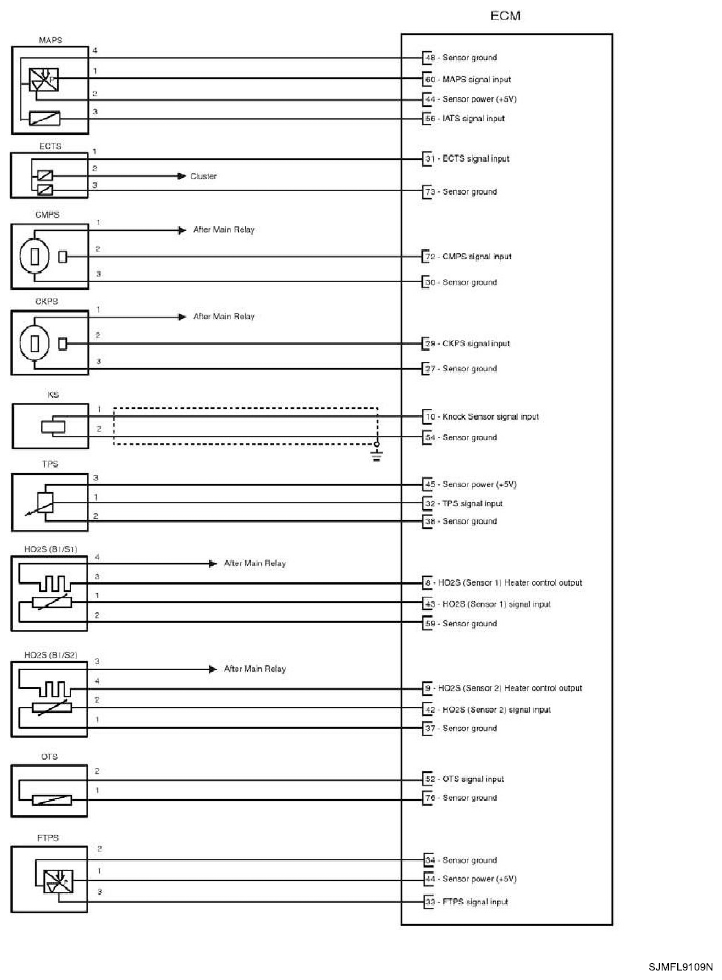

Fig 2: Engine Control System Circuit Diagram (2 Of 4)
G06206221Courtesy of HYUNDAI MOTOR CO.

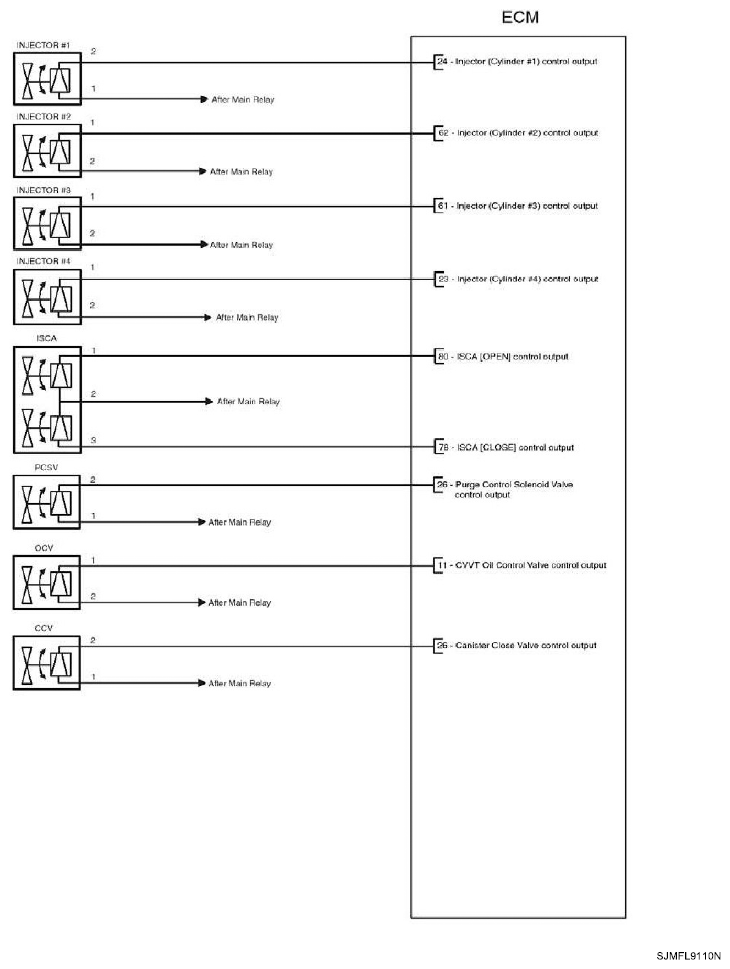

Fig 3: Engine Control System Circuit Diagram (3 Of 4)
G06206222Courtesy of HYUNDAI MOTOR CO.

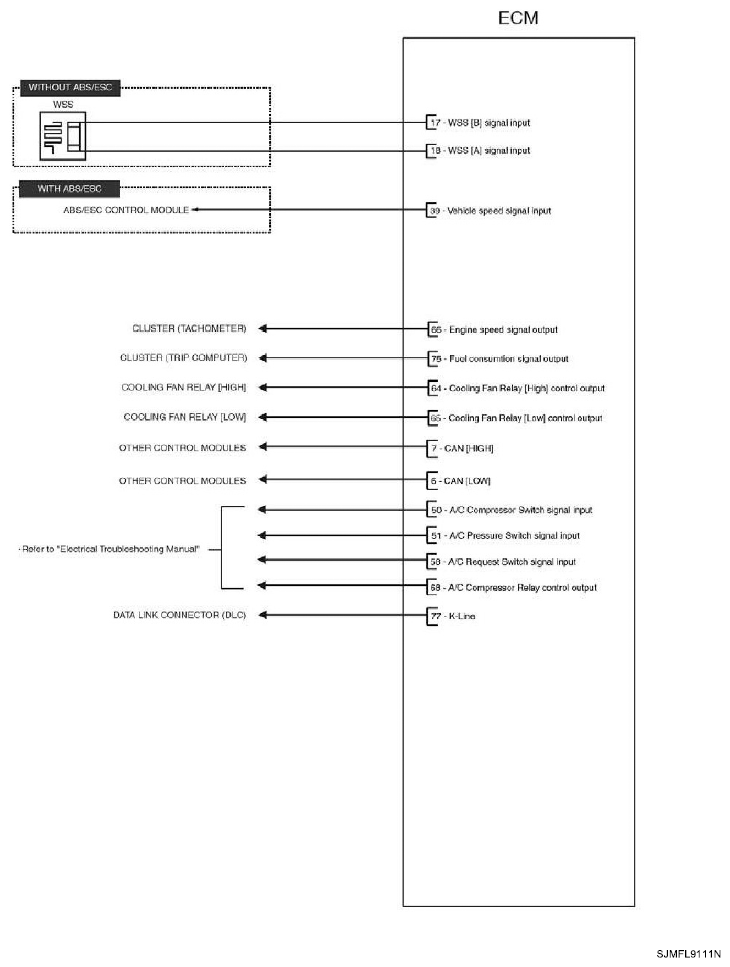

Fig 4: Engine Control System Circuit Diagram (4 Of 4)
G06206223Courtesy of HYUNDAI MOTOR CO.
