Circuit Diagram

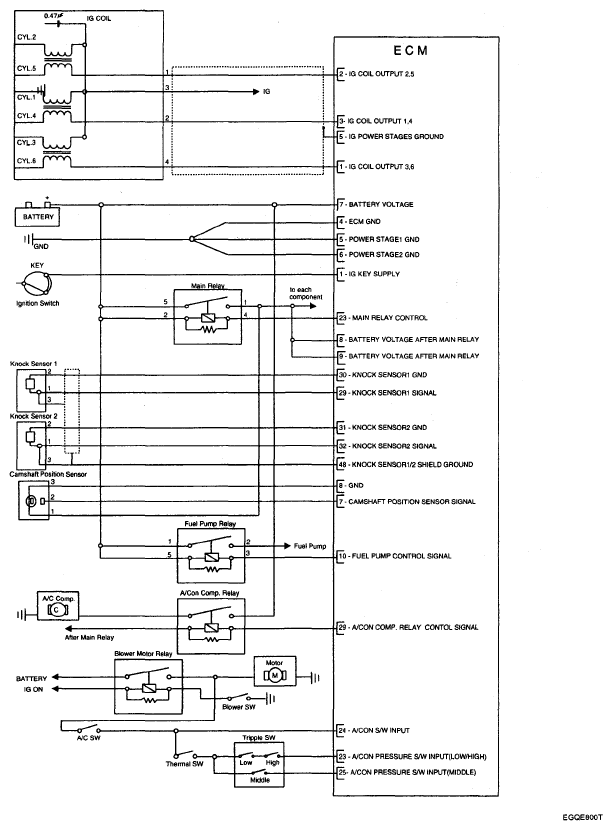

Fig 1: Engine Control Module Circuit Diagram (1 Of 3)
G04810166Courtesy of HYUNDAI MOTOR CO.

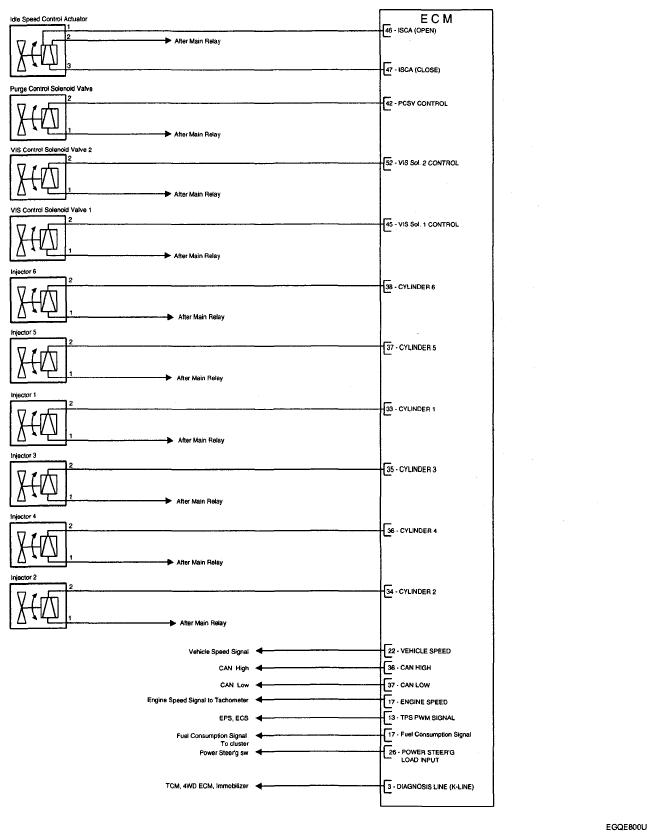

Fig 2: Engine Control Module Circuit Diagram (2 Of 3)
G04810167Courtesy of HYUNDAI MOTOR CO.

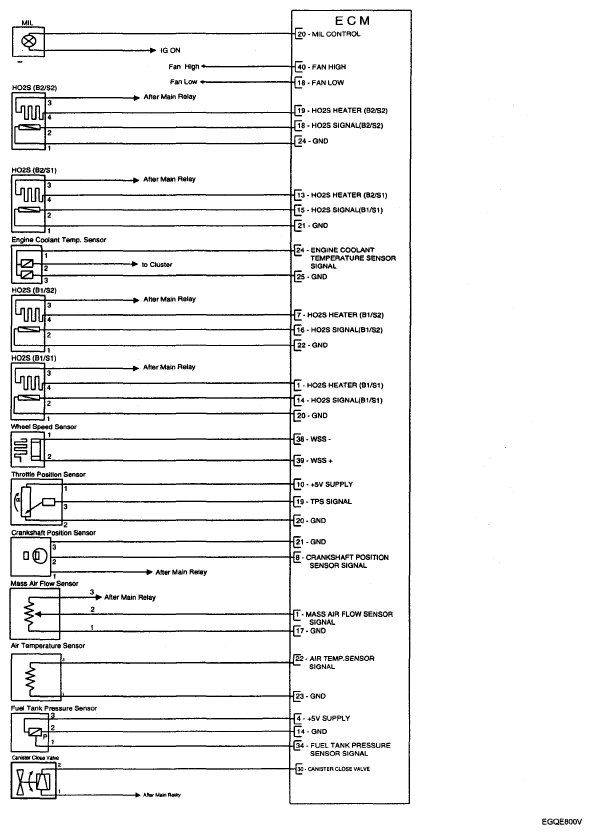

Fig 3: Engine Control Module Circuit Diagram (3 Of 3)
G04810168Courtesy of HYUNDAI MOTOR CO.
