Engine Control System (G6BA - GSL 2.7L): Injector: Inspection

  1. Measure resistance between the terminal 1 and 2 of the injector.

    Injector Resistance:  13.8 ~ 15.2 Ω at 20 °C (68°F)

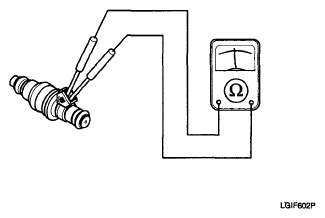

    Fig 1: Measuring Resistance Between Terminal 1 And 2 Of Injector
    G04801882Courtesy of HYUNDAI MOTOR CO.
  2. If the resistance is not within specification, replace the injector.
