Customer Problem Analysis Sheet

  1. VEHICLE INFORMATION

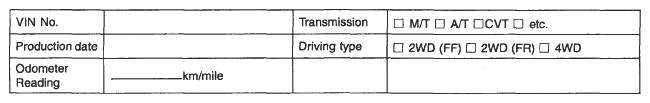

    Fig 1: Customer Problem Analysis Sheet - Vehicle Information
    G05337520Courtesy of HYUNDAI MOTOR CO.
  2. SYMPTOMS

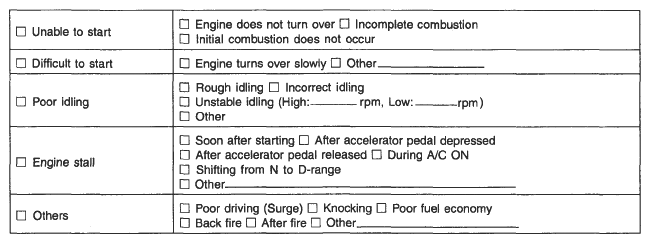

    Fig 2: Customer Problem Analysis Sheet - Symptoms
    G05337521Courtesy of HYUNDAI MOTOR CO.
  3. ENVIRONMENT

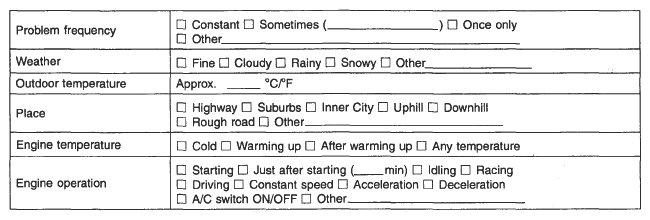

    Fig 3: Customer Problem Analysis Sheet - Environment
    G05337522Courtesy of HYUNDAI MOTOR CO.
  4. MIL/DTC

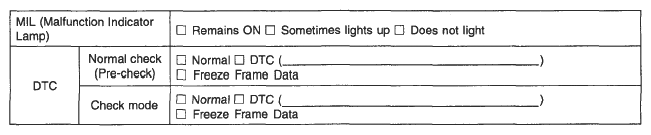

    Fig 4: Customer Problem Analysis Sheet - MIL/DTC
    G05337523Courtesy of HYUNDAI MOTOR CO.
  5. ECM/PCM INFORMATION
    Fig 5: Customer Problem Analysis Sheet - ECM/PCM Information
    G05337524Courtesy of HYUNDAI MOTOR CO.
