Repair procedures: Inspection

Fig 1: Identifying Ignition Switch Connector And Key Warning Switch Connector
G06805625Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

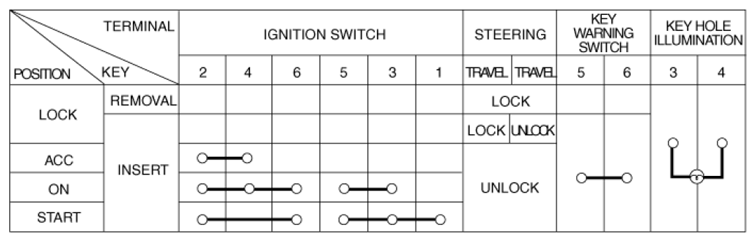

    Fig 2: Ignition Switch Connector And Key Warning Switch Connector Terminals Continuity Chart
    G06805626Courtesy of HYUNDAI MOTOR CO.
