Components and Components Location: Components

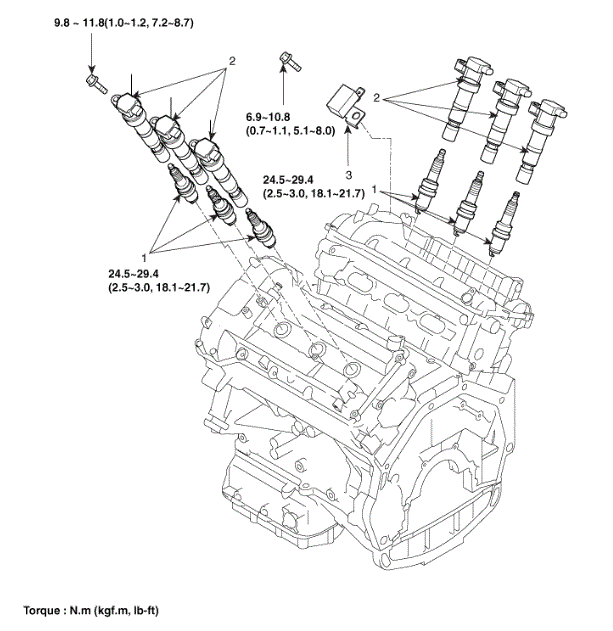

Fig 1: Spark Plug, Ignition Coil And Condenser With Torque Specifications

G00630066

Courtesy of HYUNDAI MOTOR CO.

1. Spark plug

2. Ignition coil

3. Condenser
