Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "DOOR TRIM REPLACEMENT ")

  3. Disconnect the 14P connector from the switch.
    Fig 1: Identifying Power Window Main Switch Connector Terminals
    G06882636Courtesy of HYUNDAI MOTOR CO.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

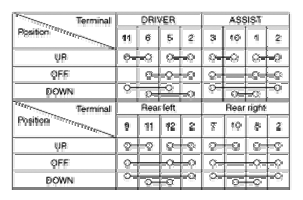

    Fig 2: Power Window Main Switch Continuity Chart
    G06882637Courtesy of HYUNDAI MOTOR CO.
