Home >> Hyundai >> 2011 >> Accent GLS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transaxle Assembly >> Components and Components Location >> Components

Components and Components Location: Components

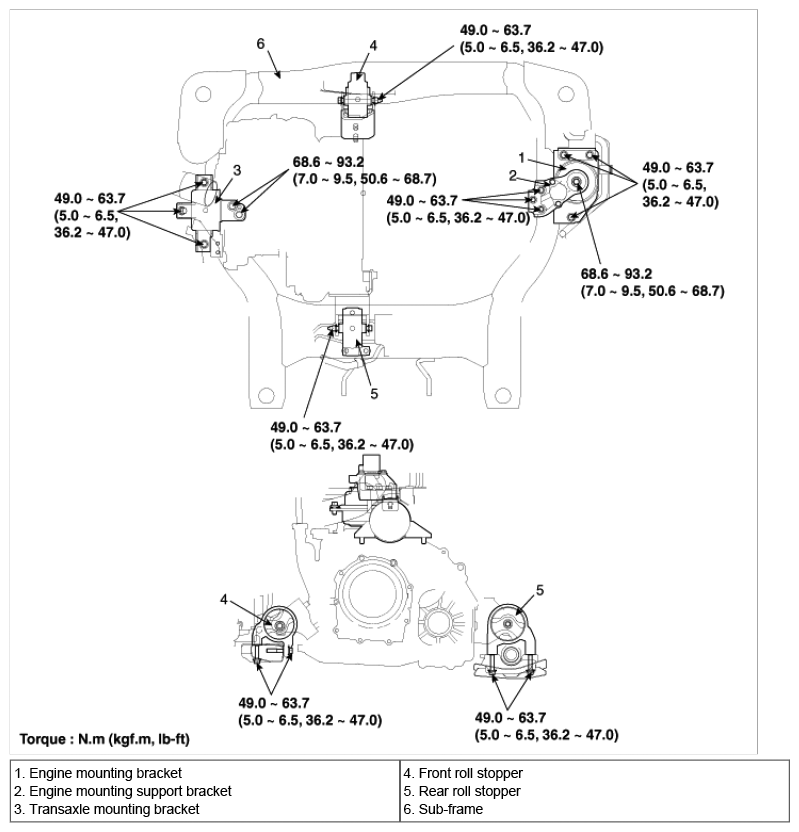

Fig 1: Identifying Engine And Transaxle Assembly Mounting Components And Bolts Tightening Torque

G06878993

Courtesy of HYUNDAI MOTOR CO.
