Repair Procedures: Inspection

Fig 1: Identifying Ignition Switch Connector Terminals Layout
G07250476Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

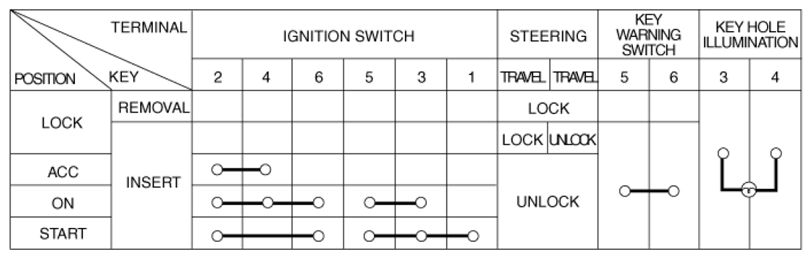

Fig 2: Terminal Continuity Chart
G07250477Courtesy of HYUNDAI MOTOR CO.
