Rear Power Window Switch Up

Check for continuity between the terminals.

1. There should be continuity between the No. 3 and No. 4 terminals when power and ground are connected to the No. 6 and No. 10 terminals.
2. There should be no continuity between the No. 3 and No. 4 terminals when power is disconnected.

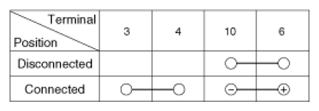

   Fig 1: Terminal Continuity Chart

   Courtesy of HYUNDAI MOTOR CO.
