Home >> Hyundai >> 2011 >> Azera GLS >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Components

Components and Components Location: Components

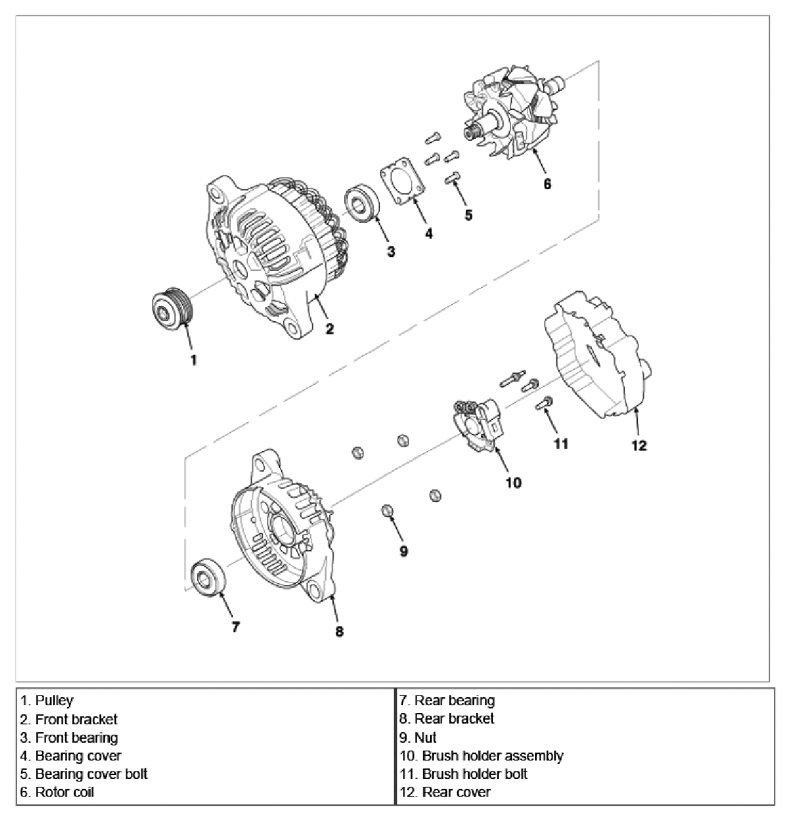

Fig 1: Identifying Alternator Components

G06801620

Courtesy of HYUNDAI MOTOR CO.
