Components And Components Location: Components

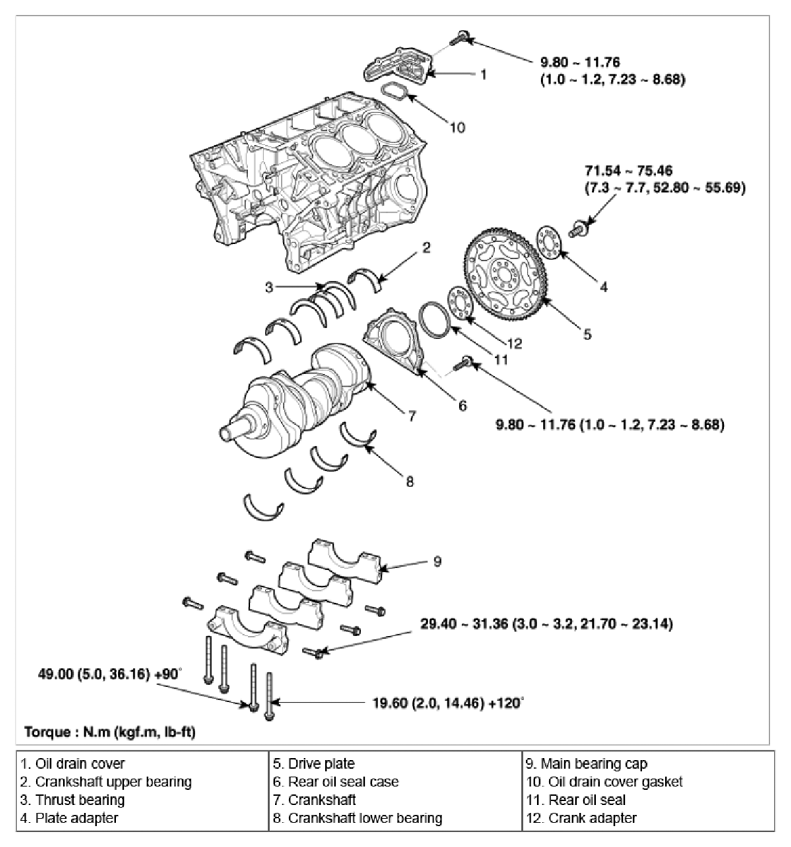

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

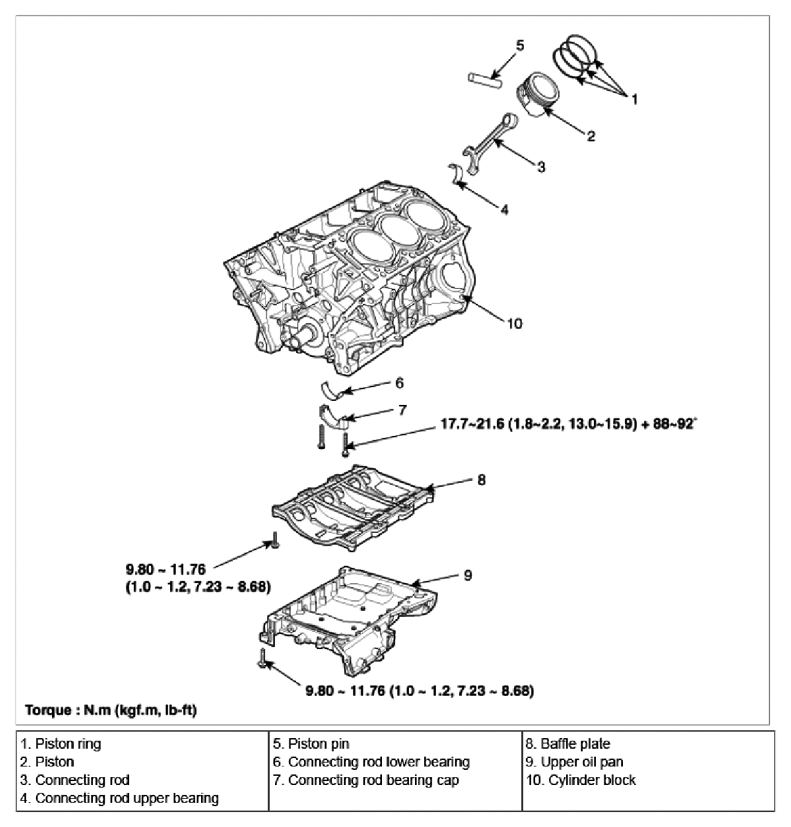

Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
