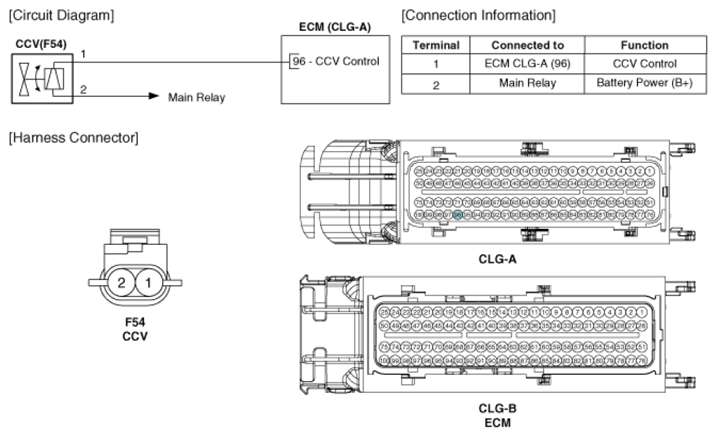

Home >> Hyundai >> 2011 >> Azera GLS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System Components >> Canister Close Valve (CCV) >> Schematic Diagrams >> Circuit Diagram
