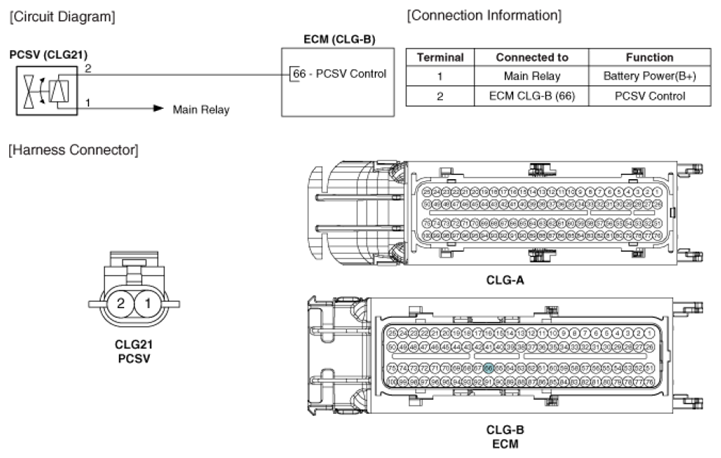

Home >> Hyundai >> 2011 >> Azera GLS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System Components >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram
