Repair Procedures: Installation

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

The TDC marks of the intake and exhaust CVVT sprockets are slightly turned from the TDC position as shown when the timing chain is removed.

Fig 1: Identifying TDC Marks

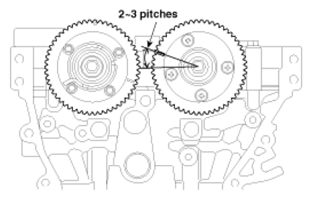

Turn the crankshaft clockwise (about 2~3 pitches) from the TDC position (the dowel pin (A) of crankshaft is about 3° with the engine vertical line) as rotation of the intake CVVT sprocket from the TDC position.

Fig 2: Turning Crankshaft Clockwise
Install the timing chain guide (A).
Tightening torque:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

Fig 3: Identifying Timing Chain Guide
Install the timing chain tensioner arm (A).
Tightening torque:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

Fig 4: Identifying Timing Chain Tensioner Arm

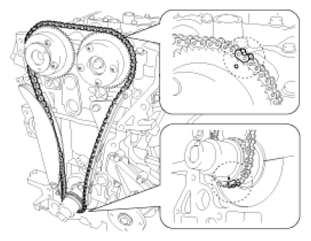

Install the timing chain.
Crankshaft sprocket (A) → Timing chain guide (B) → Intake CVVT sprocket (C) → Exhaust CVVT sprocket (D)
1. Install the timing chain with no slack between the crankshaft sprocket and the intake CVVT sprocket.

  Fig 5: Identifying Crankshaft Sprocket

  NOTE: The timing marks of each sprocket should be matched with timing marks (color link) of timing chain when installing the timing chain.

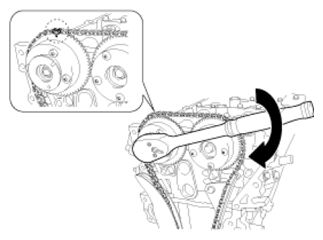

2. Install the timing chain on the exhaust CVVT sprocket with no slack while turning the CVVT assembly clockwise.
Fig 6: Identifying Timing Marks
NOTE:
- The timing mark of the exhaust CVVT sprocket should be matched with timing mark (color link) of timing chain when installing the timing chain.
- Press down the timing chain links on the exhaust CVVT sprocket to prevent the sprocket from spinning.
Install the timing chain auto tensioner (A) and remove the stopper pin (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 7: Identifying Timing Chain Auto Tensioner
After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm that the TDC marks on the intake and exhaust CVVT sprockets are aligned with the top surface of cylinder head.

Fig 8: Rotating Crankshaft
Install the timing chain cover.
1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
2. The sealant locations on the chain cover and the counter parts (cam carrier, cylinder head, cylinder block, and lower crankcase) must be free of harmful foreign materials, oil, dust and moisture. Spraying cleaner on the surface and wiping with a clean duster.

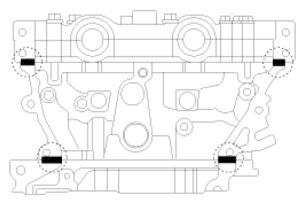

3. Before assembling the timing chain cover, liquid sealant should be applied on the gap between cam carrier, cylinder head and cylinder block.
  Bead width: 3.0 ~ 5.0 mm (0.11 ~ 0.20 in.)

  Sealant: Threebond 1217H or equivalent

  Fig 9: Identifying Sealant Locations
4. After applying liquid sealant on the timing chain cover, assemble the cover within 5 minutes after sealant was applied. Continuous bead of sealant should be applied to prevent any path from oil leakage.
  Bead width

  Whole section: 2.5 ~ 3.5 mm (0.10 ~ 0.14 in.)

  Section A: 4.5 ~ 5.5 mm (0.18 ~ 0.22 in.)

  Section B: 8.0 ~ 9.0 mm (0.32 ~ 0.35 in.)

  Sealant: Threebond 1217H or equivalent

  Fig 10: Identifying Liquid Sealant Apply Area
5. Install the timing chain cover. The dowel pins on the cylinder block and holes on the timing chain cover should be used as a reference in order to assemble the timing chain cover in exact position.
  Tightening torque

  Bolts (A, B):

  18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

  Bolt (C):

  19.6 ~ 23.5 N.m (2.0 ~ 2.4 kgf.m, 14.5 ~ 17.4 lb-ft)

  Bolts (D, E):

  39.2 ~ 49.0 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)

  Bolt (F):

  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

  Fig 11: Identifying Timing Chain Cover Bolt Tightening Sequence

  CAUTION: Do not reuse the seal bolts (C, F).

  CAUTION: The engine running or pressure test should not be performed within 30 minutes after the timing chain cover was assembled.
Replace the front oil seal if necessary.
1. Apply engine oil on the edge of new oil seal.
  CAUTION: Remove any debris from the lip portion of the oil seal.

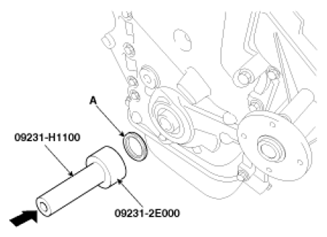

2. Install the front oil seal (A) using SST (09231-2E000, 09231-H1100).

  Fig 12: Identifying Front Oil Seal

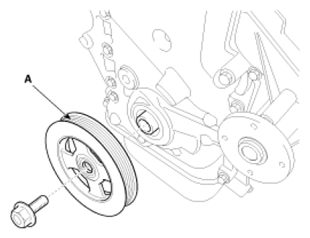

Install the crankshaft damper pulley (A).
Tightening torque:

196.1 ~ 205.9 N.m (20.0 ~ 21.0 kgf.m, 144.7 ~ 151.9 lb-ft)

Fig 13: Identifying Crankshaft Damper Pulley

CAUTION: Do not press the pulley or apply the excessive force to prevent the rubber part from being deformed.
NOTE:
There are two methods to hold the ring gear when installing the crankshaft damper pulley.

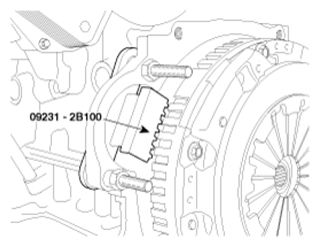

- Install the SST (09231-2B100) to hold the ring gear after removing the starter.

  Fig 14: Identifying SST (09231-2B100)
  - Install the SST (09231-3D100) to hold the ring gear after removing the service cover.

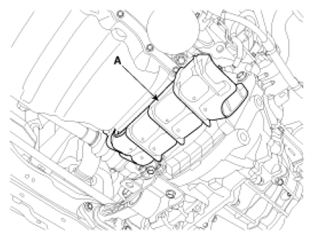

  1. Remove the air guard (A).

    Fig 15: Identifying Air Guard

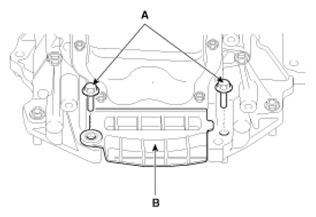

  2. Remove the two transaxle mounting bolts (A) and the service cover (B) on the bottom of the lower crankcase.

    Fig 16: Identifying Transaxle Mounting Bolts
  3. Adjust the length of the holder (A) so that the grooves of the holder puts into the ring gears (B) at the closest position.
- Adjust the angle and length of the links (C) so that the two transaxle mounting bolts can be fastened into the original mounted holes.

  Fig 17: Adjusting Length Of Holder
- Install the SST using the two transaxle mounting bolts. Tighten the bolts and nuts of the holder and links securely.

  Fig 18: Installing Sst
Install the water pump pulley (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 19: Identifying Water Pump Pulley
Install the front engine hanger (A).
Tightening torque:

34.3 ~ 39.2 N.m (3.5 ~ 4.0 kgf.m, 25.3 ~ 28.9 lb-ft)

Fig 20: Identifying Front Engine Hanger
Install the drive belt.
1. Preassemble the alternator (A) temporarily.

  Fig 21: Identifying Alternator

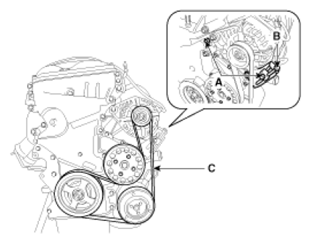

2. Install the drive belt (B).
3. Adjust the tension by turning the tension adjusting bolt (A) clockwise. (Refer to "ALTERNATOR ")
  Belt tension

  New belt:

  637.4 ~ 735.5 N (65 ~ 75 kgf, 143.3 ~ 165.3 lbf)

  Used belt:

  441.3 ~ 539.4 N (45 ~ 55 kgf, 99.2 ~ 121.3 lbf)

  Fig 22: Turning Tension Adjusting Bolt
4. Tighten the alternator mounting bolts with the specified torque.
  Tightening torque

  M10 bolt:

  29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

  M8 bolt:

  21.6 ~ 32.4 N.m (2.2 ~ 3.3 kgf.m, 15.9 ~ 23.9 lb-ft)
Install the engine mounting support bracket.
1. Install the engine mounting support bracket (B).
  Tightening torque

  Nut (C):

  63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

  Bolt (D) and Nuts (E):

  49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
2. Connect the engine ground line (A).

  Fig 23: Connecting Engine Ground Line
3. Remove the jack from the lower crankcase.
Install the oil pan. (Refer to LUBRICATION SYSTEM in this group)
Install cylinder head cover.
1. The hardening sealant located on the cylinder head cover and the gap between the timing chain cover and the cam carrier should be removed before assembling cylinder head cover.
2. Apply engine oil on the lip portion of the oil seal on the cover and outer surface of the spark plug pipes.
3. After applying sealant on the gap between the timing chain cover and the cam carrier, it should be assembled within 5 minutes.
  Bead width: 2.0 ~ 3.0 mm (0.08 ~ 0.12 in.)

  Sealant: Threebond 1217H or equivalent

  Fig 24: Identifying Sealant Apply Area
4. Install the cylinder head cover (A) by tightening the bolts, in several passes, in the sequence as shown.
  Tightening torque

  1st step: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

  2nd step: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

  Fig 25: Identifying Cylinder Head Cover
  CAUTION:
  - Do not reuse cylinder head cover gasket.
  - Before installing the cylinder head cover, make sure the cylinder head cover gasket is not separated from the cylinder head cover gasket groove.
  - The engine running or pressure test should not be performed within 30 minutes after the cylinder head cover was assembled.
Install the oil level gauge (A).

Fig 26: Identifying Oil Level Gauge
Install the ignition coils (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 27: Identifying Ignition Coils
Connect the PCV (Positive crankcase ventilation) hose (A).

Fig 28: Identifying PCV Hose
Connect the breather hose (A).

Fig 29: Identifying Breather Hose
Install the wiring and protectors on the cylinder head cover and then connect the wiring connectors and harness clamps.
1. The intake OCV (Oil control valve) connector (A)

  Fig 30: Identifying Intake OCV Connector
2. The exhaust OCV (Oil control valve) connector (A)

  Fig 31: Identifying Exhaust OCV Connector
3. The alternator connector (A)

  Fig 32: Identifying Alternator Connector
4. The ignition coil connectors (A)

  Fig 33: Identifying Ignition Coil Connectors

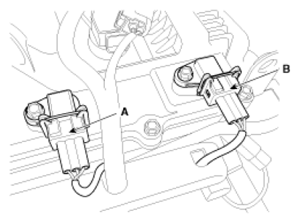

5. The intake CMPS (Camshaft position sensor) connector (A)
6. The exhaust CMPS (Camshaft position sensor) connector (B)

  Fig 34: Identifying CMPS Connectors
Install the engine cover. (Refer to ENGINE AND TRANSAXLE ASSEMBLY in this group)
Install the RH under cover. (Refer to ENGINE AND TRANSAXLE ASSEMBLY in this group)
Install the RH front wheel. (Refer to "WHEEL ")
Connect the battery negative terminal. (Refer to ENGINE AND TRANSAXLE ASSEMBLY in this group)
Add all the necessary fluids and check for leaks. Connect GDS. Check for codes, note, and clear. Recheck.
NOTE:
- Refill engine with engine oil.
- Clean battery posts and cable terminals and assemble.
- Inspect for fuel leakage.
- After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
- Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
