Components and Components Location: Components

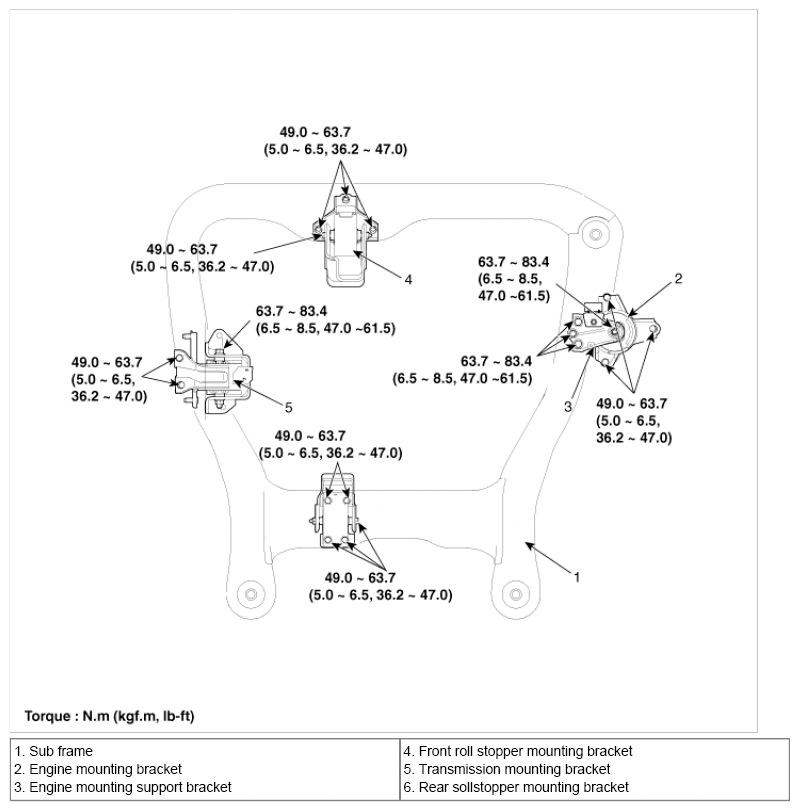

Fig 1: Engine Mounting Components Location

G07249577

Courtesy of HYUNDAI MOTOR CO.
