Azera Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System Components
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form

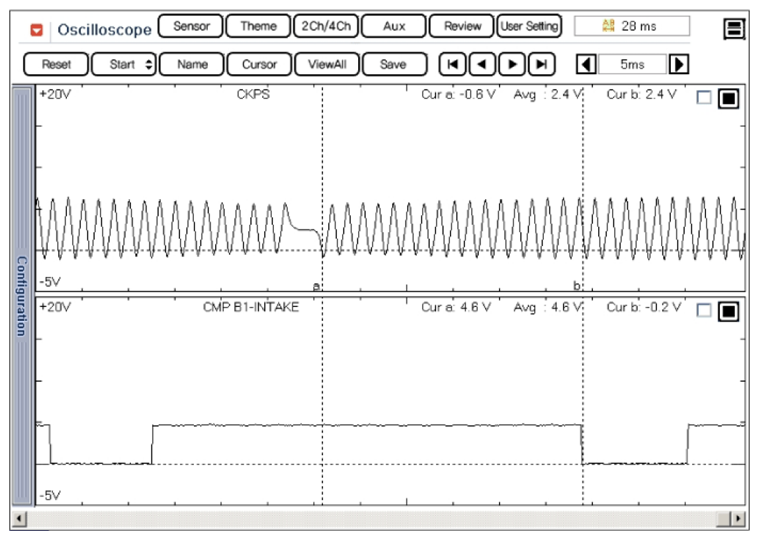

Fig 1: Normal Waveform Of CKPS & CMPS
Courtesy of HYUNDAI MOTOR CO.

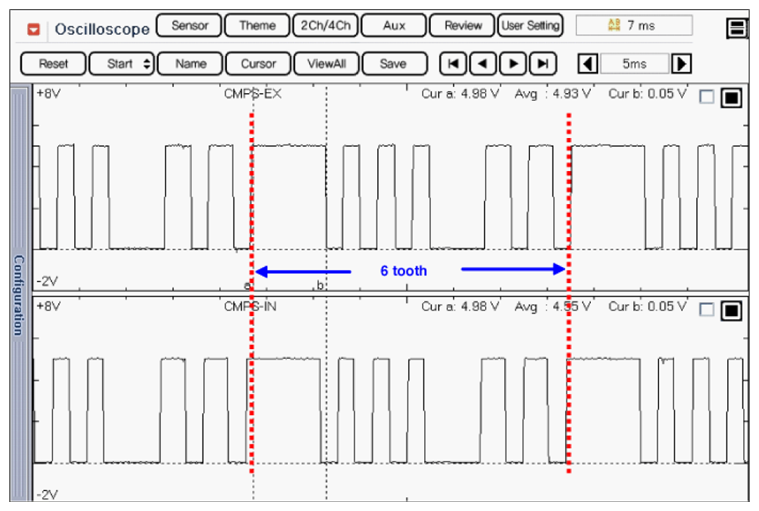

Fig 2: Normal Waveform Of CMPS
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
