Home >> Hyundai >> 2011 >> Elantra GLS, Standard >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System >> Components and Components Location >> Components

Components and Components Location: Components

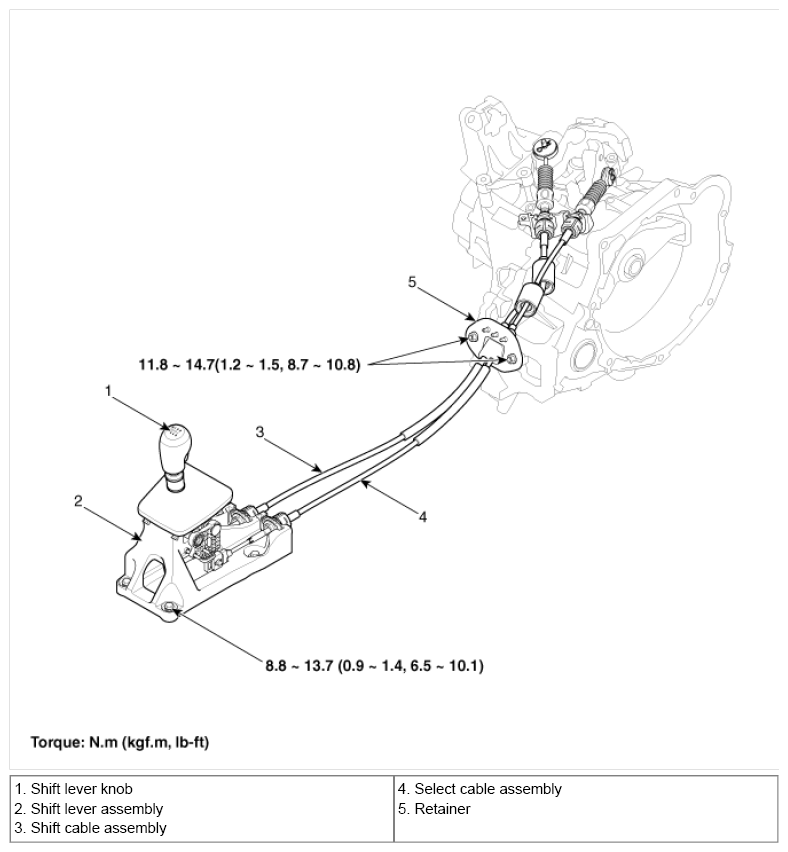

Fig 1: Manual Transaxle Control System Replacement Components With Torque Specifications

G07264205

Courtesy of HYUNDAI MOTOR CO.
