Repair Procedures: Removal

CAUTION:
  • When removing and installing the trunk lid, an assistant is necessary.
  • Take care not to be closed the trunk when removing the push rod.
  • Wear gloves to protect hands from injury.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the left trunk trim in the trunk. (Refer to the "TRUNK ")
  3. Remove the power trunk connecting rod (B) after removing the push rod pin (A).
    NOTE:
    • Only remove the gas lifter when removing the whole trunk assembly.

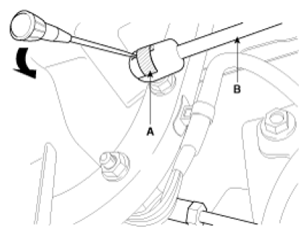

    Fig 1: Removing Whole Trunk Assembly
    G07313009Courtesy of HYUNDAI MOTOR CO.
  4. Remove the power trunk module & drive unit (A) after removing the bolts, nut and connector.
    Fig 2: Identifying Power Trunk Module & Drive Unit With Bolts And Nut
    G07313010Courtesy of HYUNDAI MOTOR CO.
