Assist Power Window Switch

  1. When checking the assist power window switch, select a vehicle type and "IPM" menu.
  2. Select "ADM (Assist Door Module)".
  3. Select option "Input/Output monitoring".

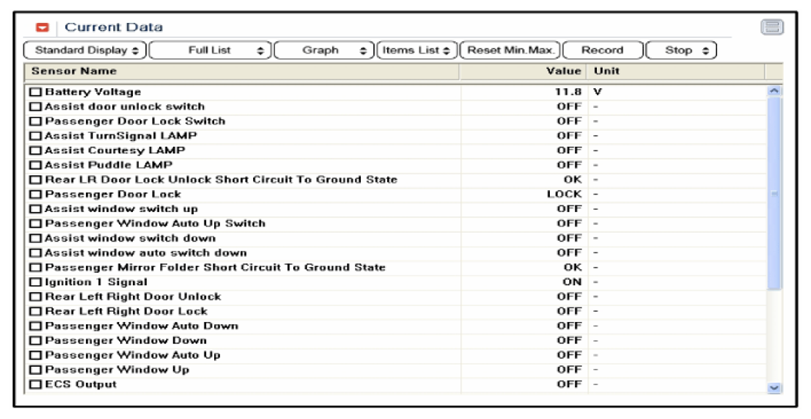

    Fig 1: Selecting Input/Output Monitoring
    G07312965Courtesy of HYUNDAI MOTOR CO.
  4. To check the input value of power window switch in force mode, select option "ACTUATION TEST".

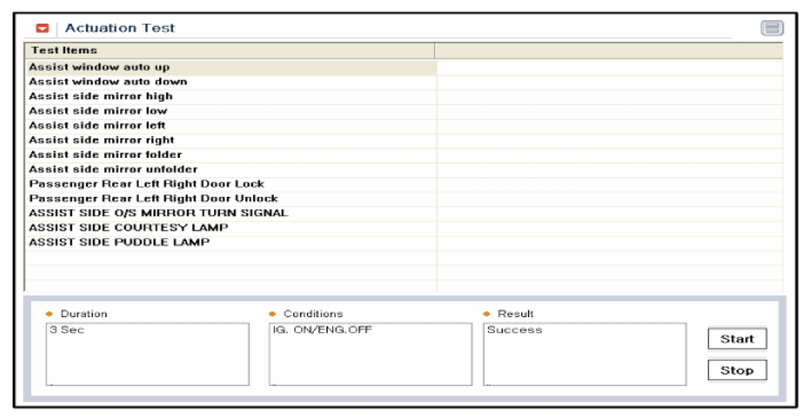

    Fig 2: Selecting Actuation Test
    G07312966Courtesy of HYUNDAI MOTOR CO.
