Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Timing System >> Timing Chain >> Components and Components Location >> Components

Components and Components Location: Components

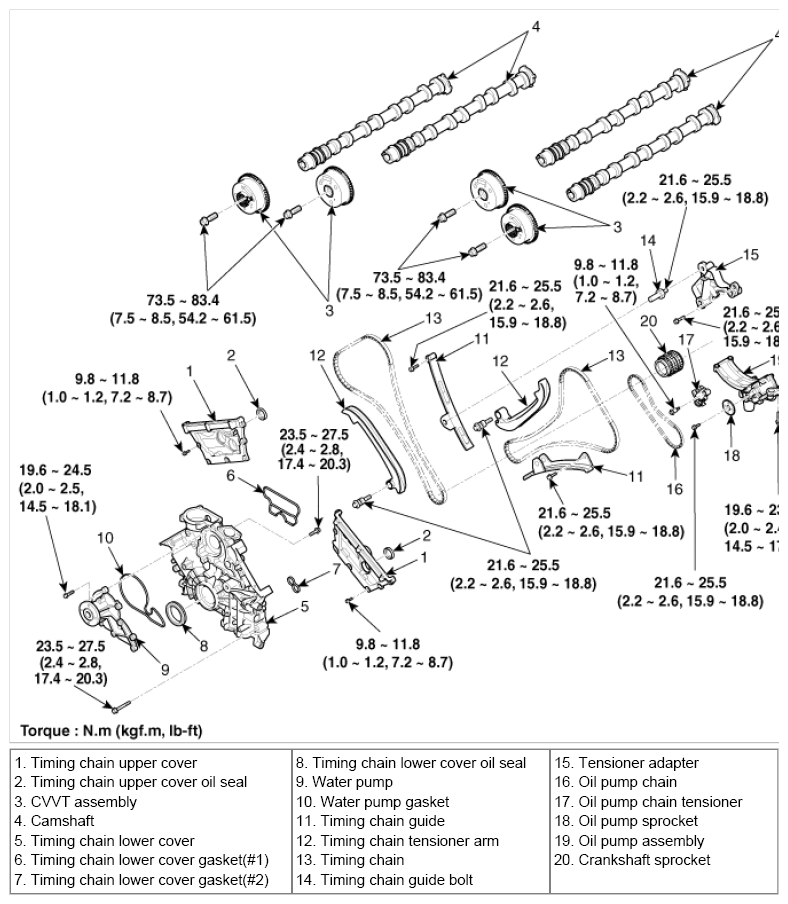

Fig 1: Exploded View Of Timing System

G07308578

Courtesy of HYUNDAI MOTOR CO.
