Repair Procedures: Removal

  1. Preparation
    1. Remove the rear seat cushion (Refer to REAR SEAT in BD group).

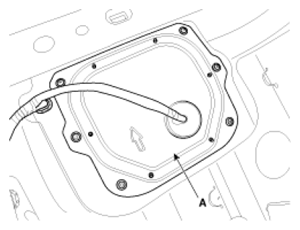

    2. Remove the service cover of the fuel pump (A).
      Fig 1: Identifying Fuel Pump
      G07311586Courtesy of HYUNDAI MOTOR CO.

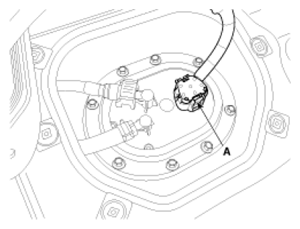

    3. Disconnect the fuel pump connector (A).
      Fig 2: Identifying Fuel Pump Connector
      G07311587Courtesy of HYUNDAI MOTOR CO.
    4. Idle the engine and wait until fuel in feed line is exhausted.
    5. After engine stops, turn the ignition switch OFF.

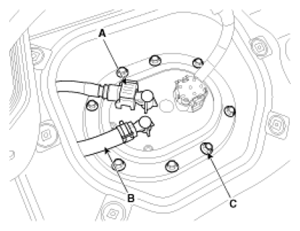

  2. Disconnect the fuel feed tube quick-connector (A) and the suction hose (B).
    Fig 3: Identifying Feed Tube Quick-Connector And Suction Hose
    G07311588Courtesy of HYUNDAI MOTOR CO.
  3. Remove the fuel pump from the fuel tank after removing the installation bolts (C).
    Fig 4: Identifying Fuel Pump, Fuel Sender And Fuel Pressure Regulator
    G07311589Courtesy of HYUNDAI MOTOR CO.
