Trunk Lid Switch

  1. Check for continuity between the terminals.

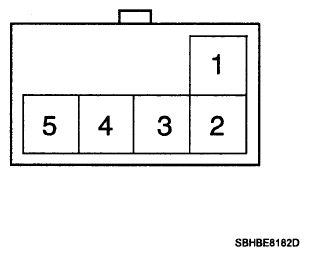

    Fig 1: Identifying Trunk Lid Switch Terminals
    G06103730Courtesy of HYUNDAI MOTOR CO.
  2. If continuity is not specified, inspect the switch

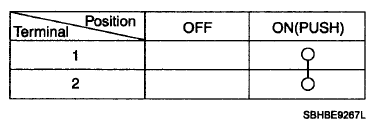

    Fig 2: Terminals Continuity Chart
    G06103731Courtesy of HYUNDAI MOTOR CO.
