Smart Key Unit: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the fender (A). (Refer to BUMPER )

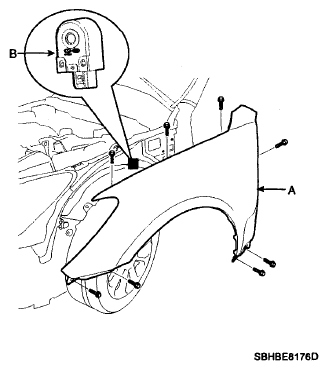

    Fig 1: Identifying Fender And Buzzer
    G06103724Courtesy of HYUNDAI MOTOR CO.
  3. Remove the buzzer (B) in the clip hole after disconnecting the connector on the side rail panel.
