Trunk Lid Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Trunk lid panel (B). (Refer to INTERIOR TRIM )

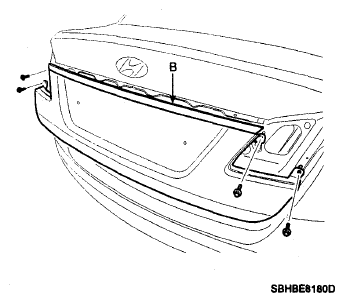

    Fig 1: Identifying Trunk Lid Panel
    G06103728Courtesy of HYUNDAI MOTOR CO.
  3. Remove the trunk lid switch from the trunk lid switch assembly (A) after loosening the bolts.

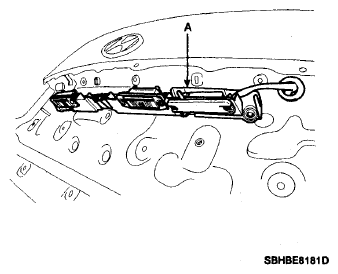

    Fig 2: Identifying Trunk Lid Switch Assembly
    G06103729Courtesy of HYUNDAI MOTOR CO.
