Home >> Hyundai >> 2011 >> Genesis 3.8 >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start/Stop Button >> Component

Start/Stop Button: Component

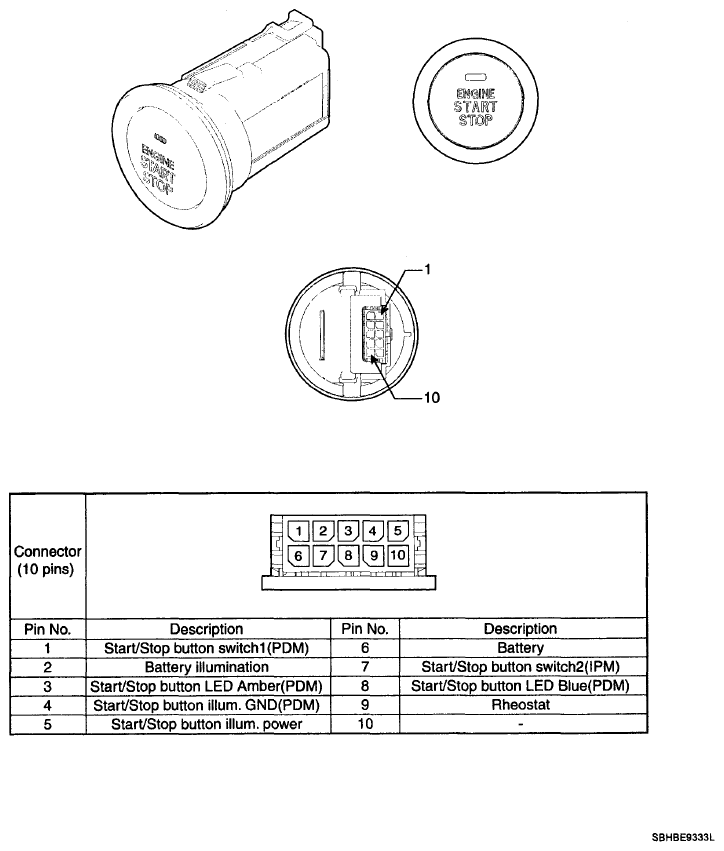

Fig 1: Identifying Start/Stop Button Components

G06103654

Courtesy of HYUNDAI MOTOR CO.
