RF Receiver

Disconnect the negative (-) battery terminal.
After loosening the mounting screws and bolts, then remove the glove box (A). (Refer to CRASH PAD )

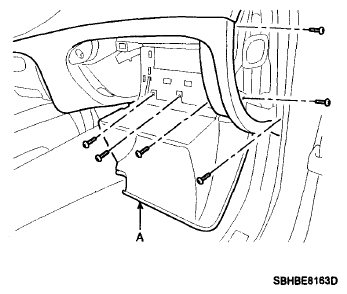

Fig 1: Identifying Glove Box With Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the glove box housing connector (A).

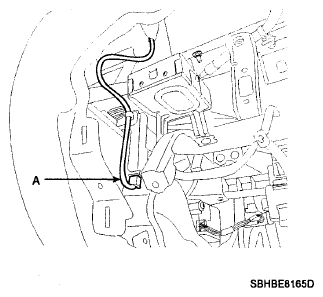

Fig 2: Identifying Glove Box Housing Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting nuts and connector (A), then remove the RF receiver (B).

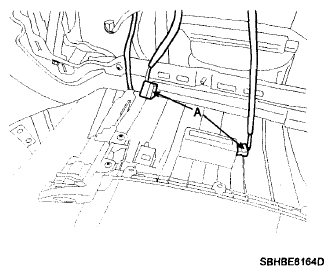

Fig 3: Identifying Mounting Nuts And Connector
Courtesy of HYUNDAI MOTOR CO.

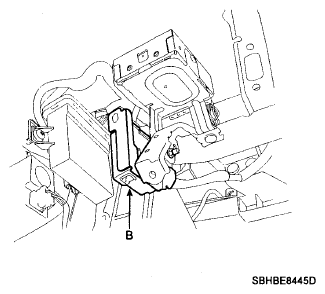

Fig 4: Identifying RF Receiver
Courtesy of HYUNDAI MOTOR CO.
