Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form

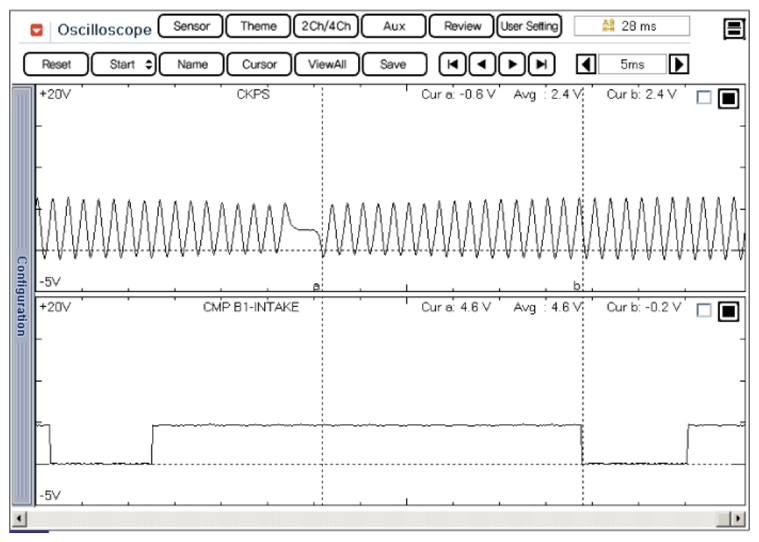

Fig 1: CKPS & CMPS - Waveform Graph (Normal Waveform)
Courtesy of HYUNDAI MOTOR CO.

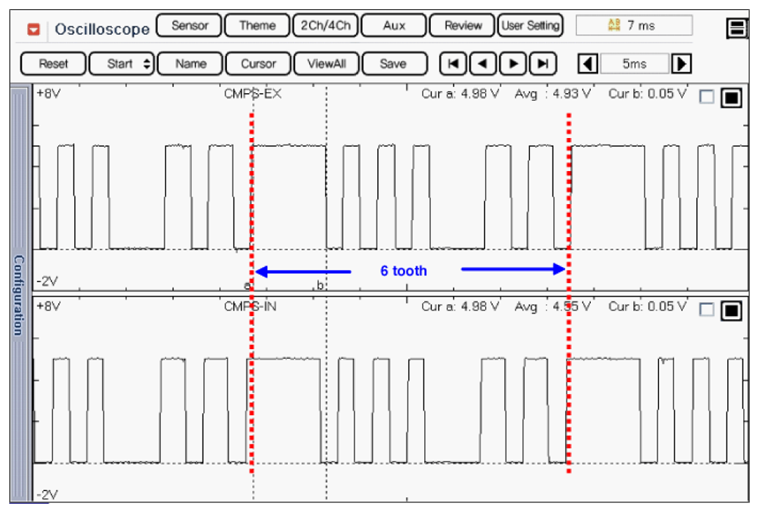

Fig 2: Camshaft Position Sensor - Waveform Graph (Normal Waveform)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
