Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

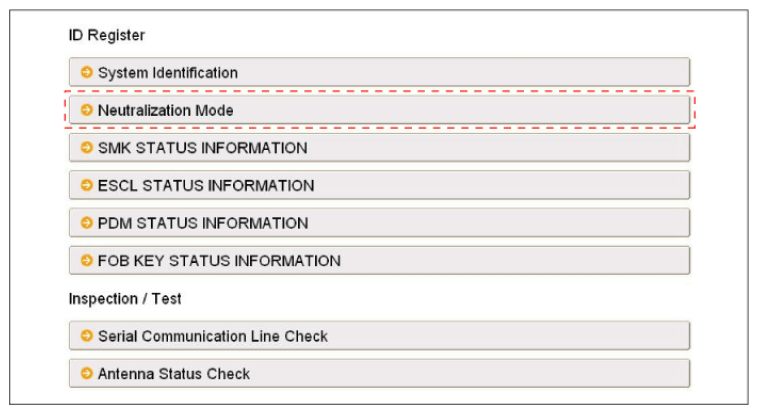

    Fig 1: Selecting Neutralization Mode
    G06875390Courtesy of HYUNDAI MOTOR CO.

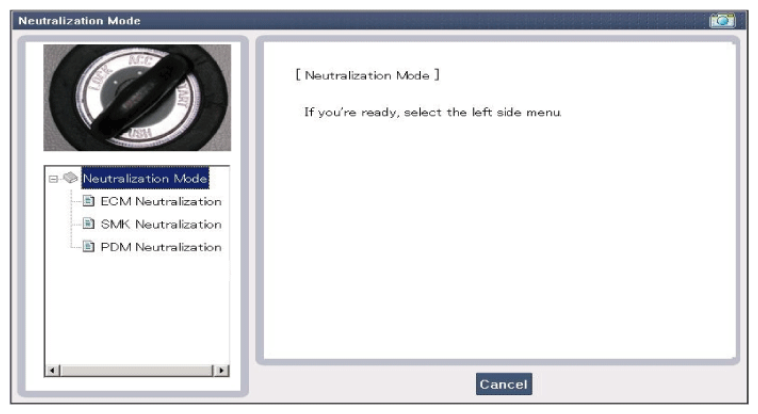

    Fig 2: Display - Neutralization Mode Screen
    G06875391Courtesy of HYUNDAI MOTOR CO.

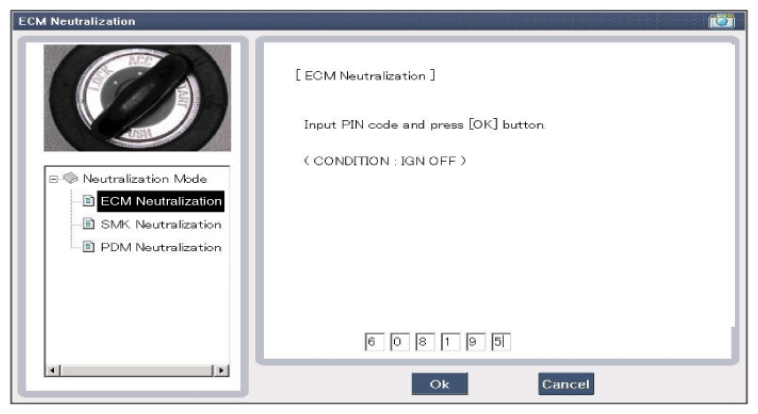

    Fig 3: Display - ECM Neutralization Entering Screen
    G06875392Courtesy of HYUNDAI MOTOR CO.

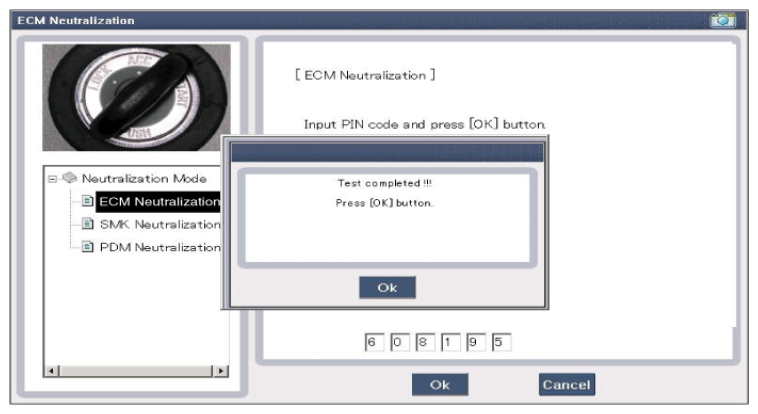

    Fig 4: Display - ECM Neutralization Mode Completed Screen
    G06875393Courtesy of HYUNDAI MOTOR CO.

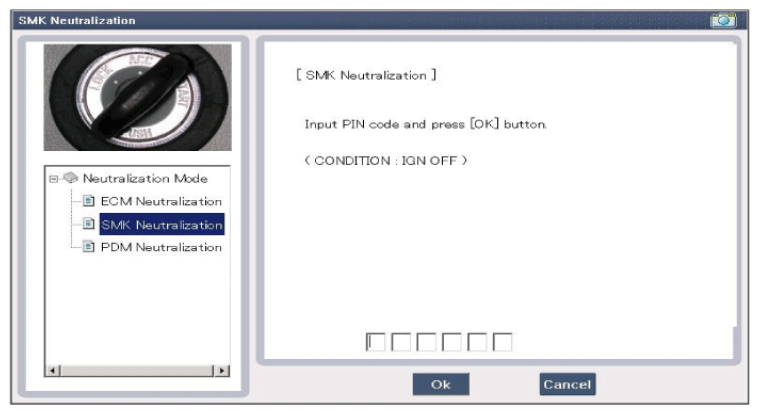

    Fig 5: Display - SMK Neutralization Entering Screen
    G06875394Courtesy of HYUNDAI MOTOR CO.
    Fig 6: Display - SMK Neutralization Entering Screen
    G06875395Courtesy of HYUNDAI MOTOR CO.

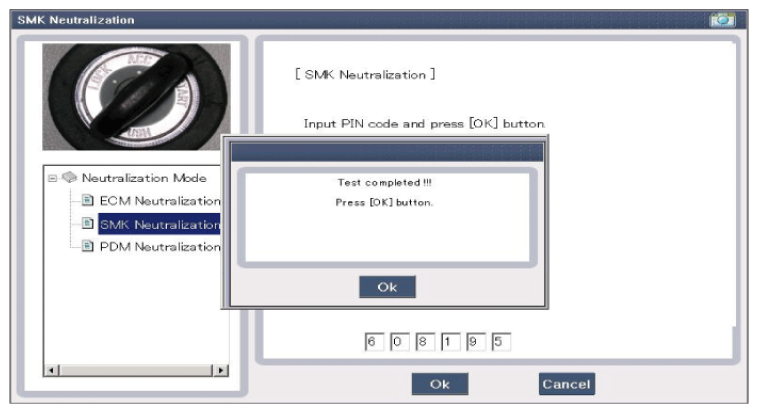

    Fig 7: Display - SMK Neutralization Completed Screen
    G06875396Courtesy of HYUNDAI MOTOR CO.
    Fig 8: Display - PDM Neutralization Entering Screen
    G06875397Courtesy of HYUNDAI MOTOR CO.

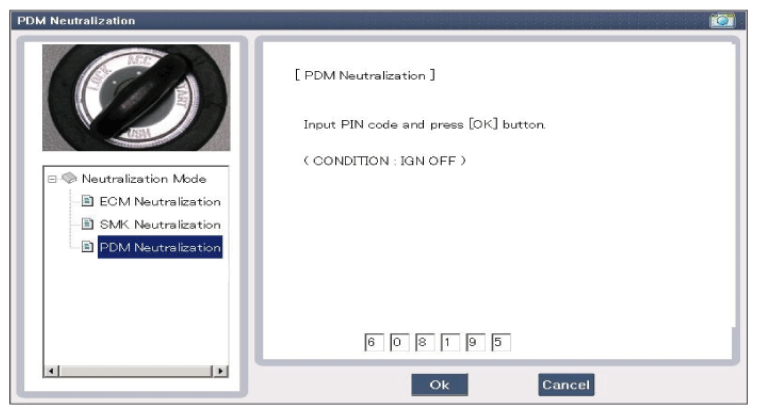

    Fig 9: Display - PDM Neutralization Entering Screen
    G06875398Courtesy of HYUNDAI MOTOR CO.

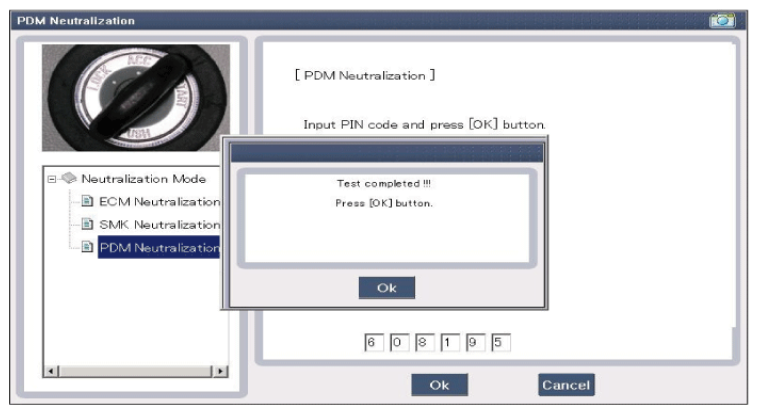

    Fig 10: Display - PDM Neutralization Completed Screen
    G06875399Courtesy of HYUNDAI MOTOR CO.

    Input Switch List

    INPUT SWITCH LIST

    No Item name Unit
    1 SSB SW2 -
    2 ACC -
    3 IGN1 -
    4 Gear 'P' Position -
    5 Brake SW -
    6 FL Door Lock Button -
    7 FR Door Lock Button -
    8 Trunk Lid SW -
    9 Battery Voltage -
    10 Alternator Voltage -
    11 KEY out Indicator Lamp -
    12 Immobilizer Lamp -
    13 External Buzzer -

    Actuator List

    ACTUATOR LIST

    No. Item name Condition
    1 KEY out Indicator Lamp Ignition switch ON
    Engine off
    2 Immo. indicator Lamp Ignition switch ON
    Engine off
    3 External Buzzer Ignition switch ON
    Engine off
    4 Interior Antenna 1 Active Ignition switch ON
    Engine off
    5 Interior Antenna 2 Active Ignition switch ON
    Engine off
    6 Interior Antenna 3 Active Ignition switch ON
    Engine off
    7 Bumper/trunk Antenna Active Ignition switch ON
    Engine off
    8 DRV_DR Antenna Active Ignition switch ON
    Engine off
    9 AST_DR Antenna Active Ignition switch ON
    Engine off
