Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

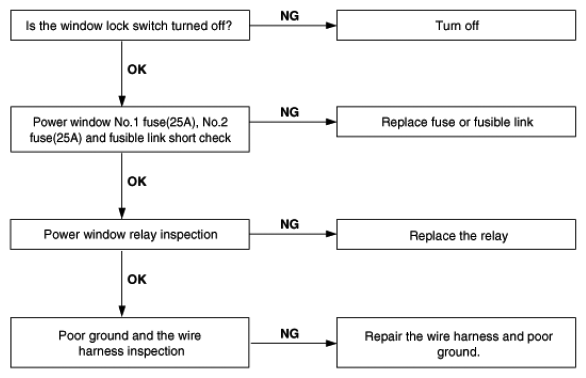

    Fig 1: Power Window Troubleshooting Chart (Windows Not Operating From Main Switch On Driver's Door)
    G06874836Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

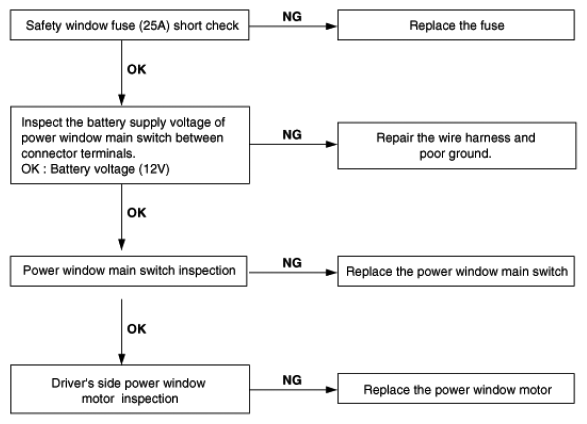

    Fig 2: Power Window Troubleshooting Chart (Driver's Side Window Not Operating)
    G06874837Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

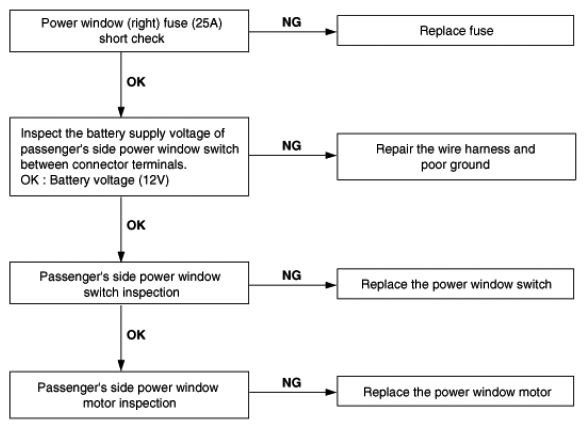

    Fig 3: Power Window Troubleshooting Chart (Passenger's Side Window Not Operating)
    G06874838Courtesy of HYUNDAI MOTOR CO.
