Home >> Hyundai >> 2011 >> Tucson GL, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control System >> ESC Control Module >> Components and Components Location >> Components

Components and Components Location: Components

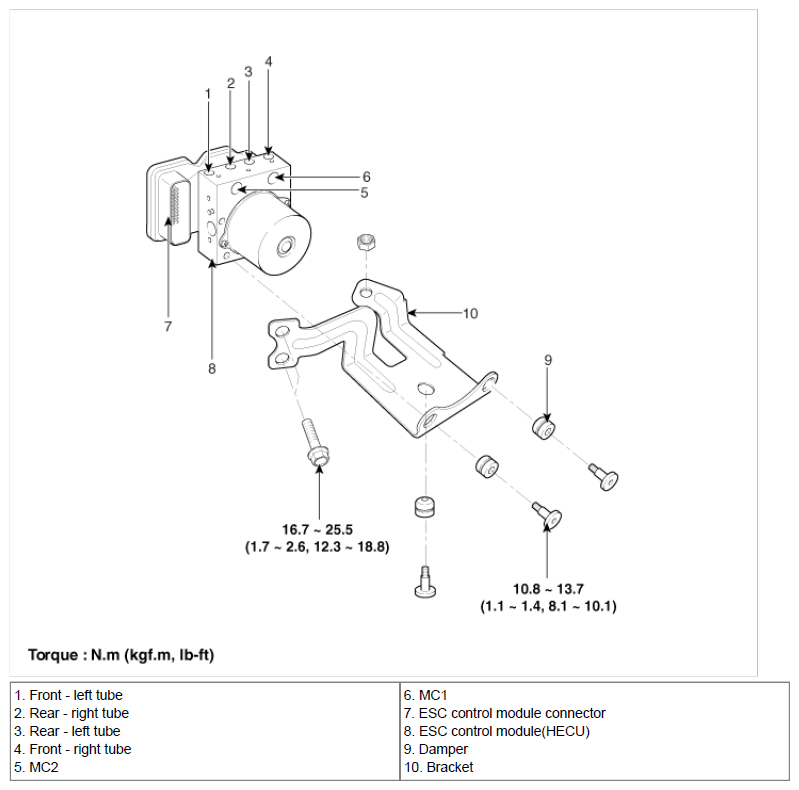

Fig 1: ESC Control Module Replacement Components With Torque Specifications

G06874571

Courtesy of HYUNDAI MOTOR CO.
