Transmitter Code Registration (Using GDS)

1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

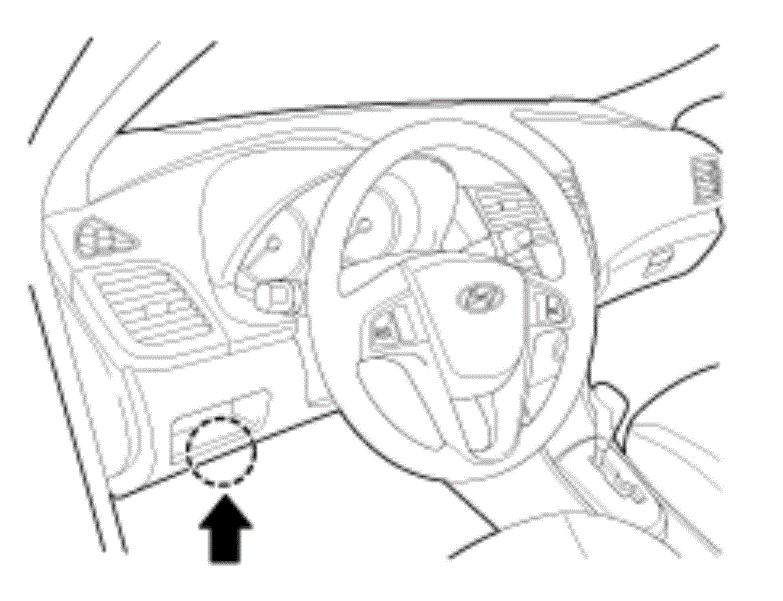

   Fig 1: Locating Data Link Connector (16 Pins)

   Courtesy of HYUNDAI MOTOR AMERICA
2. Select the vehicle model and then do "CODE SAVING"

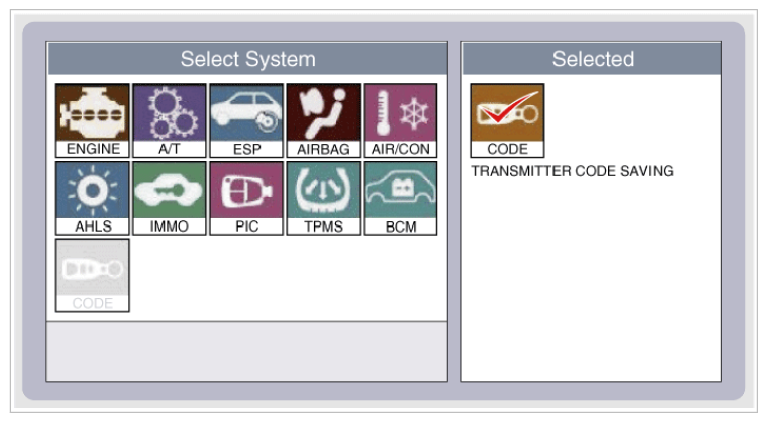

   Fig 2: Display - Selection Screens

   Courtesy of HYUNDAI MOTOR AMERICA
3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

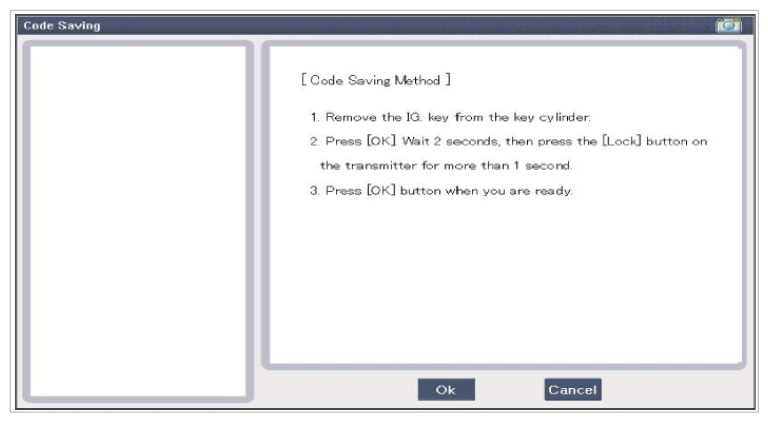

   Fig 3: Display - Code Saving Screen (Code Saving Method)

   Courtesy of HYUNDAI MOTOR AMERICA
4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

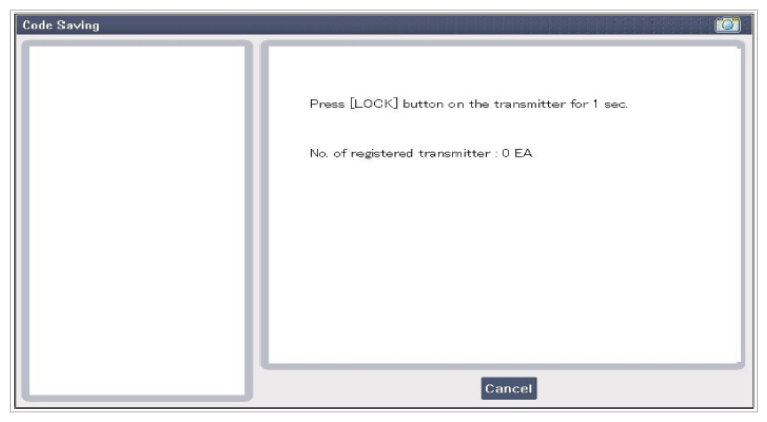

   Fig 4: Display - Code Saving Screen (Pressing Lock Button On Transmitter)

   Courtesy of HYUNDAI MOTOR AMERICA

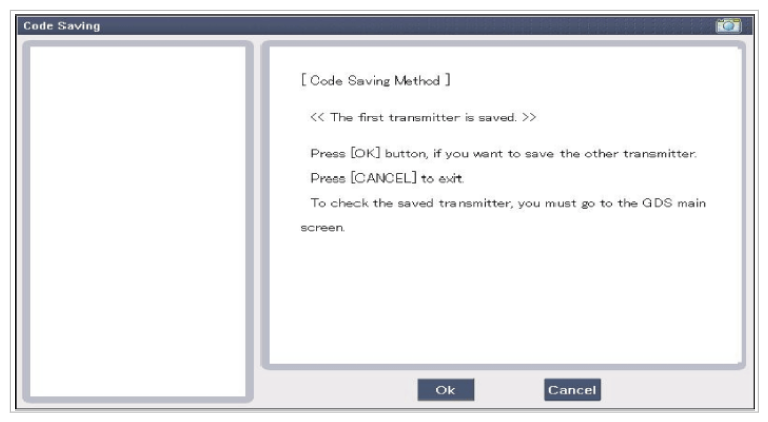

Fig 5: Display - Code Saving Screen (First Transmitter Is Saved)

Courtesy of HYUNDAI MOTOR AMERICA

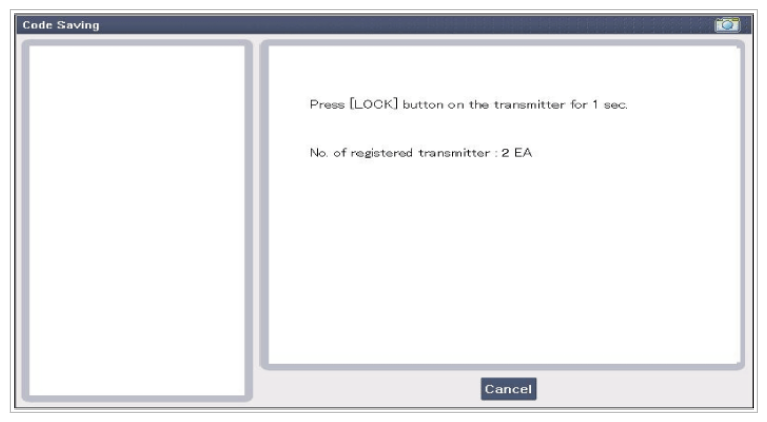

Fig 6: Display - Code Saving Screen (Pressing Lock Button On Transmitter)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Code Saving Screen (Second Transmitter Is Saved)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - Code Saving Screen (Pressing Lock Button On Transmitter)

Courtesy of HYUNDAI MOTOR AMERICA

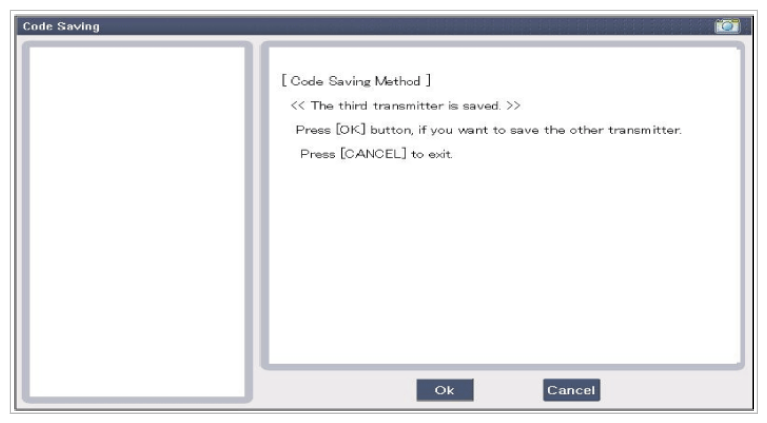

Fig 9: Display - Code Saving Screen (Third Transmitter Is Saved)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Display - Code Saving Screen (Pressing Lock Button On Transmitter)

Courtesy of HYUNDAI MOTOR AMERICA

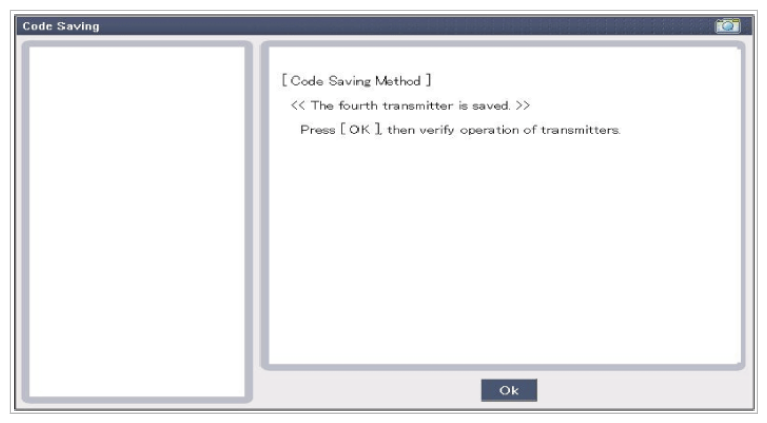

Fig 11: Display - Code Saving Screen (Fourth Transmitter Is Saved)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Display - Code Saving Screen (Pressing Lock Button On Transmitter)

Courtesy of HYUNDAI MOTOR AMERICA
