Armrest Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

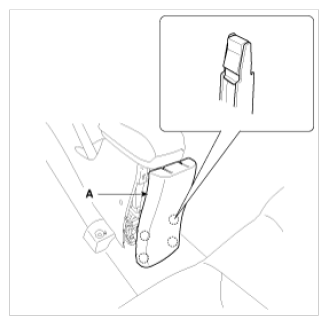

Using a screwdriver or remover, remove the rear console cover (A).

Fig 1: Removing Rear Console Cover
Courtesy of HYUNDAI MOTOR AMERICA

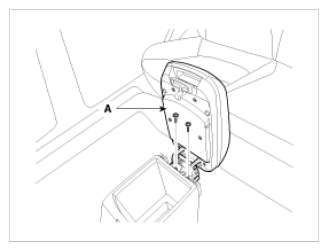

After loosening the mounting screws, then remove the armrest assembly (A).

Fig 2: Identifying Armrest Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
